null Eachine Handbag for Viswhoop 2.5 Inch 130mm 3-4S HD Cinewhoop Whoop FPV Racing Drone Specification: Brand name: Eachine Item name: Handbag Suitable for Eachine Viswhoop 2.5 Inch HD drone Package Included:1 x Handbag ...

Available

Only US$4.59, buy best eachine jst-sh 1.0mm 5 pin 5p diy cable for fpv av vtx rx rc drone flight controller osd gps rc sale online store at wholesale price. ...

Available

Only US$11.53, buy best eachine k-loverleaves 5.8g 5dbi 6 leaf clover antenna rhcp sma/rp-sma 1 pair for fpv vtx rx rc drone sale online store at wholesale price. ...

Available

null Eachine LAL 5style 220mm 4S Freestyle 5 Inch FPV Racing Drone PNP/BNF F4 BT FC Caddx Ratel Camera 2307 2450KV Motor 50A Blheli_32 ESC The LALseriescomeswithanew 5stylefpvracingdrone. Itmeans 5 Inchfreestylefpvracingdronereachedanewlevelofcost-effectiveandappearance. Madewithmore TPUprotectionparts, smoothpowersystemandmoredifferentreceiverversiontoconvenientyourselection.PNPand BNFversionhasreadyandyouwillloveflyingit. Let'senjoythe 5style! Note: TPU Camera mount for Gopro & Gopro 7 camera show on the photo are not included. Camera mount will sale in spare part. Specification: Brand name: Eachine Item name:LAL 5style 220mm 4S Freestyle 5 Inch FPV Racing Drone Drone weight: 395.20g (Without Battery) Frame Kit Wheelbase: 225mm Bottom plate: 2mm Upper plate: 2mm Arm plate: 5mm X plate: 2mm Motor Mode: 2307KV:2450 Idle current (IO/10V): 2.1 A No.of Cells (Lipo):3-4 S Peakcurrent: 52 A Max. power: 830 W Max. thrust: 1337g (4S/5″) Configu-ration:12N14 P Internal Resistance (Rm):0.0386Ω Stator diameter: 23mm Stator thickness: 7mm Motor diameter: 28.5mm Motor length: 19.7mm Shaft length: 34.2mm Shaft diameter: φ5mm Motor mount hole

Size: M3 Install hole distance: 16*16mm Recommend propeller: 5-7 Inch Weight: 39.5g ESC50A3-6S Blheli_32 DSHOT1200 4 IN 1 ESCContinue current: 50 A Burst current: 60A (10s) Input voltage: 3-6SBEC: NO Current sensor: YESMain control chip: STM32F051 Firmware: Blheli_32 Support DSHOT 150/300/600/1200/MULTISHOT/PWM/ONESHOTMOS: 5X6 Installation hole: 30.5

...

Available

null Eachine LAL 5style 220mm 6S Freestyle 5 Inch FPV Racing Drone PNP/BNF F4 BT FC Caddx Ratel Camera 2307 1850KV Motor 50A Blheli_32 ESC The LALseriescomeswithanew 5stylefpvracingdrone. Itmeans 5 Inchfreestylefpvracingdronereachedanewlevelofcost-effectiveandappearance. Madewithmore TPUprotectionparts, smoothpowersystemandmoredifferentreceiverversiontoconvenientyourselection.PNPand BNFversionhasreadyandyouwillloveflyingit. Let'senjoythe 5style! Note: TPU Camera mount for Gopro & Gopro 7 camera show on the photo are not included. Camera mount will sale in spare part. Specification: Brand name: Eachine Item name:LAL 5style 220mm 6S Freestyle 5 Inch FPV Racing Drone Drone weight: 395.20g (Without Battery) Frame Kit Wheelbase: 225mm Bottom plate: 2mm Upper plate: 2mm Arm plate: 5mm X plate: 2mm Motor Mode: 2307KV: 1850 Idle current (IO/10V): 1.1 A No.of Cells (Lipo): 3-6 S Peakcurrent: 40 A Max. power: 960 W Max. thrust: 1427g (6S/5″) Configu-ration:12N14 P Internal Resistance (Rm):0.0792Ω Stator diameter: 23mm Stator thickness: 7mm Motor diameter: 28.5mm Motor length: 19.7mm Shaft length: 34.2mm Shaft diameter: φ5mm Motor mount hole

Size: M3 Install hole distance: 16*16mm Recommend propeller: 5-7 Inch Weight: 36g ESC50A3-6S Blheli_32 DSHOT1200 4 IN 1 ESCContinue current: 50 A Burst current: 60A (10s) Input voltage: 3-6SBEC: NO Current sensor: YESMain control chip: STM32F051 Firmware: Blheli_32 Support DSHOT 150/300/600/1200/MULTISHOT/PWM/ONESHOTMOS: 5X6 Installation hole: 30.5x 30.

...

Available

Eachine LAL5 225mm 5 Inch 4K 6S FPV Racing Drone PNP F405 Bluetooth FC Caddx Tarsier V2 Cam 2507 1850KV 50A Blheli_32 3-6S 5.8 Ghz 25-800m W VTX6/7 Inch Frame Arm, Click here. More spare Parts of LAL5, Click here. Specifications: Brand Name: Eachine Item Name: LAL5 225mm 5 Inch 4K 6S FPV Racing Drone Wheelbase: 225mm Weight: 411.8g (without battery) Package

Size: 270x 270x 160mm Package weight: 1034.7g Frame Wheelbase: 225mm Arm thickness: 5mm X plate: 2mm Bottom plate: 2mm Upper plate: 2mm Motor Mode: 2507KV: 1850 Idle current (IO/10V): 1.42 A No.of Cells (Lipo): 3-6 S Peakcurrent: 45 A Max. power: 1080 W Max. thrust: 1750g (6s/5) Configu-ration:12N14 P Internal Resistance:0.0398 Stator diameter: 25mm Stator thickness: 7mm
Height: 19.5mm
Width: 31mm Shaft diameter: 5mm Motor mount hole

Size: M3 Recommend propeller: 5-7 Inch Weight: 43g ESC50A 3-6S DSHOT1200 4 IN 1 ESCContinue current: 50 A Burst current: 60A (10s) Input voltage: 3-6SBEC: NO Current sensor: YESMain control chip: STM32F051 Mos chip: TPH1R403 Firmware: Blheli_32 Support DSHOT 150/300/600/1200/MULTISHOT/PWM/ONESHOTMOS:5 * 6 Galvanometer: None Weight: 13.5g Installation hole: 30.5x 30.5mm/3 Dimension: 49 *37mm Flight Controller EACHINE Customized LAL-F405 Bluetooth Flight Controller STM32F405 Chip MPU: MPU6000 (via SPI) Input voltage: support 2-6S Lipo input Onboard Bluetooth module, support APP configuration via smartphone Firmware: MATEKF405 Onboard German Bosch BMP280 high precision barometer Flight control onboard OSD chip, suppo

...

Available

Eachine LAL5 228mm 4K FPV Racing Drone Spare Part F405 Bluetooth Flight Controller Specification:EACHINE Customized LAL-F405 Bluetooth Flight Controller STM32F405 Chip MPU: MPU6000 (via SPI) Input voltage: support 2-6S Lipo input Onboard Bluetooth module, support APP configuration via smartphone Firmware: MATEKF405 Onboard German Bosch BMP280 high precision barometer Flight control onboard OSD chip, support DMA mode (use F4 MCU to control OSD), you can use Beta Flight to adjust soft Piece adjustment parameter Built-in 5v/2A; 10V/2A BEC output Reserve Micro SD Black Box Reserve 5 serial ports & I2C interface for convenient GPS access (Bluetooth occupies TX5.RX5) Supports multiple types of receivers (eg SBUS, SUMH, SUMD, SPEKTRUM1024/2048, XBUS, PPM, etc. Type of receiver) With LED programming signal output port, support programmable LED light strip, can be adjusted by flying control with color & flash mode Has a voltage monitoring port (BAT) & a current monitoring port (CRT) to monitor battery voltage & current (requires additional power) Flow meter) With buzzer output port, support for external alarm buzzer for sound warning or notification of aircraft flight status Onboard 10V BEC, providing a cleaner image display All interfaces are available in socket & pad options for different people Support for betaflight/inav racing firmware
Size: 37x 37mm Mounting hole: 30.5x 30.5mm Weight: 6.1g Package Included:1 x F405 Bluetooth Flight Controller
...

Available

Eachine LAL5 228mm 4K FPV Racing Drone Spare Part 225mm Wheelbase 5mm Arm Frame Kit Specification: Brand name: Eachine Wheelbase: 225mm Arm thickness: 5mm X plate: 2mm Bottom plate: 2mm Upper plate: 2mm Weight: 108.3g Package Included:1 x 228mm Frame Kit ...

Available

Eachine LAL5 228mm 4K FPV Racing Drone Spare Part 2mm X Plate for Frame Kit Specification: Brand name: Eachine Item name: 2mm X Plate Suitable for Eachine LAL5 228mm 4K FPV Racing Drone Package Included:1 x 2mm X Plate ...

Available

Eachine LAL5 228mm 4K FPV Racing Drone Spare Part 3D Printed FPV Camera Part Fixed Mount Specification: Brand name: Eachine Item name: 3D Printed FPV Camera Part Fixed Mount Suitable for Eachine LAL5 228mm 4K FPV Racing Drone Package Included:1 x 3D Printed FPV Camera Part Fixed Mount ...

Available

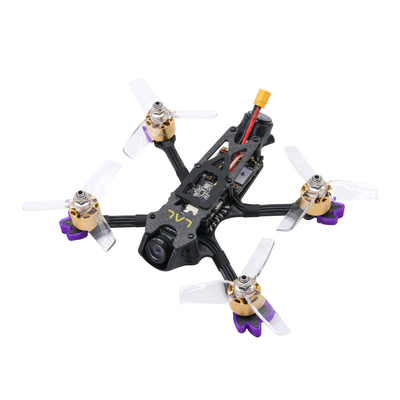

Eachine LAL3 145mm 3 Inch 3-4S FPV Racing Drone PNP Caddx Turtle V2
1080p 60fps HD Camera F4 FC 1408 3750KV Motor 25A ES

Eachine LAL3 145mm 3 Inch 3-4S FPV Racing Drone PNP Caddx Turtle V2 F4 FC 1408 3750KV Motor 25A ESC 300mW VTXSpare Part, Click HereSpecification:Brand name: EachineItem name: LAL3 3 Inch 3-4S FPV Racing DroneTake off weight: 175.3gFrame KitWheelbase: 145mmBottom plate: 3mmUpper plate: 2mm1111MicrosoftInternetExplorer402DocumentNotSpecified7.8 磅Normal0MotorMode: 1408KV: 3750Idle current (IO/10V): 0.6ANo.of Cells(Lipo): 3-4SPeakcurrent: 23AMax. power: 386.4WMax. thrust: 600gConfigu-ration:12N14PInternal Resistance:0.0495ΩStator diameter: 14mmStator thickness: 8mmHeight: 29.5mmWidth: φ20mmShaft diameter: φ5mmMotor mount hole size: M2Install hole distance: 12*12mmRecommend propeller: 2-3InchWeight: 17g1111MicrosoftInternetExplorer402DocumentNotSpecified7.8 磅Normal0ESC25A3-4S Blheli_32
DSHOT1200 4 IN 1 ESCContinue current: 25ABurst current: 30A (10s)Input voltage: 3-4SBEC: NO Current sensor: NOMain control chip: STM32F051Firmware: Blheli_32Support DSHOT 150/300/600/1200/MULTISHOT/PWM/ONESHOTWeight: 3.8gInstallation hole: 20x20mm/φ2Dimension: 31*29mmFlight ControllerLAL3-F411Flight ControllerMain control chip: stm32f411IMU: mpu6000 6-axis sensorBEC: 5v / 1aIntegrated OSDPPM / DSM / IBUS / UAR sharing: UART1-RXInstallation size: 20 * 20Weight: 3.0gSupported firmware: betaflight / cleanflight / inavSupports programmable LED SpritReserved buzzer interfaceCameraCaddx Turtle V2 1080p 60fps HD CameraHorizontal: 800TVLTV system: NTSC/PAL, changeab

Availability: In Stock
Supplier: Banggood US
SKU: 1651479

Description Reviews / Comments Add New

Product Description

Eachine LAL3 145mm 3 Inch 3-4S FPV Racing Drone PNP Caddx Turtle V2 F4 FC 1408 3750KV Motor 25A ESC 300m W VTXSpare Part, Click Here Specification: Brand name: Eachine Item name: LAL3 3 Inch 3-4S FPV Racing Drone Take off weight: 175.3g Frame Kit Wheelbase: 145mm Bottom plate: 3mm Upper plate: 2mm 1111 Microsoft Internet Explorer 402 Document Not Specified 7.8 磅 Normal 0 Motor Mode: 1408KV: 3750 Idle current (IO/10V): 0.6 A No.of Cells (Lipo): 3-4 S Peakcurrent: 23 A Max. power: 386.4 W Max. thrust: 600g Configu-ration:12N14 P Internal Resistance:0.0495Ω Stator diameter: 14mm Stator thickness: 8mm
Height: 29.5mm
Width: φ20mm Shaft diameter: φ5mm Motor mount hole

Size: M2 Install hole distance: 12*12mm Recommend propeller: 2-3 Inch Weight: 17g 1111 Microsoft Internet Explorer 402 Document Not Specified 7.8 磅 Normal 0ESC25A3-4S Blheli_32 DSHOT1200 4 IN 1 ESCContinue current: 25 A Burst current: 30A (10s) Input voltage: 3-4SBEC: NO Current sensor: NOMain control chip: STM32F051 Firmware: Blheli_32 Support DSHOT 150/300/600/1200/MULTISHOT/PWM/ONESHOTWeight: 3.8g Installation hole: 20x 20mm/φ2 Dimension: 31*29mm Flight Controller LAL3-F411 Flight Controller Main control chip: stm 32f 411IMU: mpu 6000 6-axis sensor BEC: 5v / 1a Integrated OSDPPM / DSM / IBUS / UAR sharing: UART1-RXInstallation

Size: 20 * 20 Weight: 3.0g Supported firmware: betaflight / cleanflight / inav Supports programmable LED Sprit Reserved buzzer interface Camera Caddx Turtle V2 1080p 60fps HD Camera Horizontal: 800TVLTV system: NTSC/PAL, changeab
