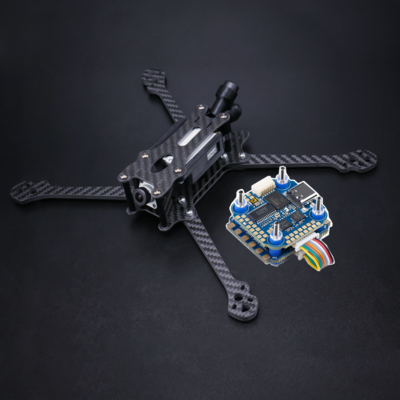

Eachine Tyro119 HD 260mm 5 Inch Frame Kit & IFlight SucceX-D Mini F7
TwinG Flight Controller W/ 40A BL_32 4in1 ESC Stack
Specification:Item Name: 260mm Frame KitF7 Flight Controller w/ 40A ESC Stack ComboEachine Tyro119 HD 260mm Frame Kit( More Details)Brand Name: EachineModel: Tyro119 HDWheelbase: 260mmMaterial: 3K Carbon FiberArm Plate Thickness: 5mmUpper Plate Thickness: 2mmBottom Plate Thickness: 2mmCenter Plate Thickness: 2mmSide Plate Thickness: 1.5mmStandoff Height: 35mmCamera Mount Width: 20mmWeight: 108giFlight SucceX-D Mini F7 TwinG FC40A ESC Stack( More Details)Brand Name: iFlightSucceX-D Mini F7 Flight ControllerMCU: 216MHz STM32F722Gyroscope: 2x ICM20689Blackbox: 32MBBetaflight OSD: YESBEC: 5V 2.5A / 9V 2.5ACurrent sensor scale: 100Inverter for SBUS input (UART2-RX)SmartaudioTramp VTX protocol supportedBeeper pad: YesRSSI input pad: NoUARTs:5Motor outputs: 48 pin 4in1 ESC port (GND, VBAT, M1,
M2, M3, M4, CUR, R5)6 pin DJI Air Unit port (R1, GND, R2, T2, GND, 9V)BLHeli32 Telemetry：RX5Input voltage: recommended 2-6S, MAX 6SFirmware: IFLIGHT_F722_TWINGMounting pattern: 20*20mm φ3Dimensions: 29*29mmUSB type-C40A BLheli_32 4in1 ESCMCU: STM32F051K66Up tp 48kHz PWM frequencyCapacity: 470uF/50VCurrent Sensor: YesInput: recommended 2-6SConstant: 40A / Burst: 50ABlHeli32 telemetry: YesSupports up to Dshot1200, Proshot, Oneshot, MultishotTarget: iFlight-BL32-4IN1Weight: 7.2gMounting pattern: 20*20mm φ3mm with Grommets φ2mmDimensions: 31*31mm (including the power pads)Package Included:1x Eachine Tyro119 HD Frame Kit1x 3D Printing TPU Part Combo (for installing DJI Air Unit, DJI Air Unit
M2, M3, M4, CUR, R5)6 pin DJI Air Unit port (R1, GND, R2, T2, GND, 9V)BLHeli32 Telemetry：RX5Input voltage: recommended 2-6S, MAX 6SFirmware: IFLIGHT_F722_TWINGMounting pattern: 20*20mm φ3Dimensions: 29*29mmUSB type-C40A BLheli_32 4in1 ESCMCU: STM32F051K66Up tp 48kHz PWM frequencyCapacity: 470uF/50VCurrent Sensor: YesInput: recommended 2-6SConstant: 40A / Burst: 50ABlHeli32 telemetry: YesSupports up to Dshot1200, Proshot, Oneshot, MultishotTarget: iFlight-BL32-4IN1Weight: 7.2gMounting pattern: 20*20mm φ3mm with Grommets φ2mmDimensions: 31*31mm (including the power pads)Package Included:1x Eachine Tyro119 HD Frame Kit1x 3D Printing TPU Part Combo (for installing DJI Air Unit, DJI Air Unit
