Eachine VTX03S + Caddx Turbo EOS2 0/25/50/100/200mw 40CH 5.8G FPV Transmitter 4:3 1200TVL 2.1mm Mini FPV Camera with 3.7V 500m Ah Li Po Battery VTX03S VTXDownload: User Manual Specification: Brand name: Eachine Item name: VTX03S FPV Transmitter Output power: 25m W/50m W/100m W/200m W switchable Input voltage: 3.3-5.5V5V camera supply, 530m A (MAX)---200m W@4.3V5V camera supply, 450m A (MAX)---100m W@4.3V5V camera supply, 360m A (MAX)---50m W@4.3V5V camera supply, 280m A (MAX)---25m W@4.3 V Video system: NTSC/PALAntenna dimensions: 55mm X 5mm diameter Antenna: IPEX
Size: 21.43*15.20mm (L*W) Weight: 2.97g
Features: Smartaudio Function PITmode Support 0.01m W Parameter-adjusting Mode 25m W/50m W/100m W/200m W power switchable One button frequency & power setup OSD configuration using FC Uart (F3/F4/F7 with OSD)5V to camera@under 300m A Adopt button instead of toggle, convenient operation 1S lipo power supply Power Off Memory Operation: Channel select Short-Press the button to change channel (CH), digital display will change synchronously. Digital display changes cyclically from 1 to 8 Band Select Press button for 2S, Blue LED display will flicker, then short presses to select 5 band A/B/E/F/r sequentially. Power select Press button for 4S. Blue LED display 0will flicker, then short presses to select power 25m W/50m W/100m W/200m W sequentially. Notice: (Number 1stand for 25mw; Number 2stand for 50mw, Number 3stand for 100mw, Number 4stand for 200mw) Parameter-adjusting Mode (0.01m W) While in P Mode you can change channels & set power levels, wi

...

Only US$11.00, buy best eachine vtx 03s 0/25/50/100/200mw 5.8ghz 40ch mini fpv transmitter support pitmode smartaudio for rc drone sale online store at wholesale price. ...

null Manual: Eachine White Snake Specification: Brand: Eachine Model: White Snake Horizontal resolution: 1500TVLLight-sensitive chips: 1/1.8＇star level HDRLens: 2.1mm/1.8mm Video formats: PAL/NTSC (OSD swappable） Image scale: 16:9/4:3 (OSD swappable) Wide dynamic: Super advanced wide dynamics (HDR-WDR） Minimum illumination: Starlight illumination Synchronous type: The synchronous Electronic shutter: PAL:1/50-100.000. NTSC:1/60-100.000 Signal to noise ratio:＞60db (Automatic gain off) Video output: CVBSTo switch between day & night: Automatic/ color / Black & white Camera parameter adjustment: Independent OSDDigital noise reduction: 3-DNRLanguage: English/ Chinese/ French/ Russian/ Spanish/ Portuguese/ Korean/ Japanese Working temperature: -20°---+60° Working voltage: DC 5V-40 V Net weight: 8G
Size: 19mm*19mm*19mm Package included:1 x Eachine White Snake 2.1mm/1.8mm 1500TVL PAL/NTSC 16:9/4:3 Switchable HDR FPV Camera for FPV Racing RC Drone
...

Eachine Wizard TS130 135mm Wheelbase Frame Kit 3K Carbon Fiber for RC FPV Racing Drone Specification: Brand name: Eachine Item name: Wizard TS130 Frame Kit Wheelbase: 135mm
Material: 3K carbon fiber Top plate thickness: 2mm Bottom plate thickness: 3mm Artist: hydrographics transfer printing Package Included:1 x Wizard TS130 Frame Kit
...

Eachine Wizard TS130 FPV Racing Drone PNP Omnibus F4 OSD 20A Dshot 600 40CH Smart Audio 200m W VTXDescription: Item Specification Eachine Wizard TS130 Wheelbase: 135mm
Material: 3K carbon fiber Top platethickness: 2mm Bottom platethickness: 3mm Artist: hydrographics transfer printing Weight: About 135g TS 20A 4in 1 Brushless ESCContinuous current: 20 A Peak current (5S): 25 A Input voltage: 2-4 S Supports Dshot 600, Dshot 300, Dshot 150

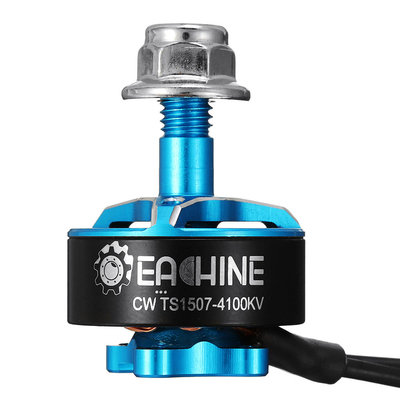

Size: 27x 27mm Weigjt: 3.3g TS1507 4100KV Brushless Motor Idle Current (Io/10V): 1.68 A Lipo Cell: 3-4 S Weight: 17.6g Max Continuous Current: 26 A Max Continuous Power: 416 W Max thrust: 626g (4S/3) Configu-ration: 9N/12 P Motor Resistance (RM): 0.0495 Stator Diameter: 15mm Stator Thickness: 7mm Motor Diameter: 21.6mm Motor Body Length: 15.5mm Overall Shaft Length: 29mm Prop adapter shaft: M5 Bolt holes spacing: 12mm Bolt thread: M2 Propeller: 3 Customized Omnibus F4 Flight Controller CPU: f 4STM32F405 Input voltage: 3-4 S Sensor: MPU6000 SPIBuilt in OSDBuilt in 5V2A BEC
Size: 25x 25mm Weight: 2.3g 5.8G 40CH25mw / 100mw / 200mw VTXInput voltage: 7-24 V Dimensions: 20x 20mm
Size:27mm 27mm 4.5mm Adjustable 25mw / 100mw / 200mw Supports smart audio (remote OSD parameter adjustment)FOXEER Arrow MICRO PRO Camera Solution: 1/3 Sony SUPER HAD II CCD+ Nextchip 2040 DSPPixel:PAL: 976 (H) x 494 (V);NTSC: 768 (H)494 (V)TV System: PALResolution: 600TVL (color) 650TVL (BW) Synchronization: internal Min. Illumination: 0.01 Lux WDR: support OSD programming board: support White Dot Repair: support DNR: 2D DNRCamera Title: support Image Adju



...

Eachine Wizard TS130 FPV Racing RC Drone Spare Part Screw Set M2*6 Screw M2 Nut M2 Screw Column Specification: Brand name: Eachine Item name: Screw Set Usage: for Eachine Wizard TS130 FPV racing RC drone Package Included:12 x M2 Screw Column 6 x M2*6 Screw 4 x M3 Nut ...

Eachine Wizard TS130 Frame Spare Part 3mm Bottom Plate 3K Carbon Fiber for FPV Racing Drone Specification: Brand name: Eachine Item name: Wizard TS130 Frame Bottom Plate Thickness: 3mm
Material: 3K Carbon Fiber Artist: Hydrographics Transfer Printing Weight: 18g Package Included:1 x TS130 Frame Bottom Plate
...

Eachine Wizard TS215 215mm FPV Racing Frame 4mm Frame Arms Carbon Fiber Description: Brand: Eachine Item name: wizard TS215 FPV racing frame
Material: carbon fiber Wheel base: 215mm Frame arm: 4mm thickness Thickness of upper plate: 3mm Thickness of lower plate: 3mm Frame weight: about 86g Note: Package doesnt include the flight controller. Without the flight controller it cant be assembled a TS215 frame kit. Package included:1 x Eachine wizard TS215 FPV racing frame
...

Eachine Wizard TS215 FPV Racing Drone Spare Part 5S 18.5V 1550m Ah 80C Lipo Battery XT60 Description: Brand name: Eachine Item name: 5S 18.5V 1550m Ah 80C Lipo Battery Capacity: 1550mah Cell: 5 S Discharge rate: 80 C Connector: XT60
Size: 84x 33x 45mm Weight: 239g Package included:1 x 5S 18.5V 1550m Ah 80C Lipo Battery
...

Eachine Wizard TS215 FPV Racing Drone Spare Part Run Cam Swift 2 1/3 CCD 600TVL Camera IR Blocked Description: Brand name: Run Cam Item name: Swift 2 600TVL Camera Image sensor: 1/3 SONY Super HAD II CCDHorizontal resolution: 600TVL, 4:3 Lens: 2.3mm 150 Signal system: PALIntegrated OSD: YESIntegrated MIC: YESS/N Ration: 60d B (AGC OFF) Electronic shutter speed: PAL:1/50~100, 000 Auto Gain control (AGC): YESBack light compensation (BLC): YESMin.illumination: 0.01 Lux/1.2FWDR: D-WDRDNR: 2DNRDay/ Night: Color / Auto / BWPower: DC 5 to 36 V Net weight: 14g Dimensions: 28.5mm * 26mm * 26mm Connector: JST-XH 1.25mm * 5P/2 P Package included:1 x Run Cam Swift 2 600TVL Camera ...
