Eachine Wizard X220S FPV Racer Spare Part 1179 800TVL CCD Camera 2.8mm Lens PALDescription: Brand: Eachine Item name: 1179 800TVL CCD Camera
Colour: violet Sensor: CCDResolution (horizontal center): 800TVLShell

Size: 25mm*25mm Weight: 11g Resolution: PAL: 1980H1080 (2MP) Format: PALVideo output: 1.0 Vp-p/75 Automatic gain control: 0.25/0.50/0.75/1.00 adjustable, up to 55d B.AWB: ON/OFFExposure mode: electron exposure Electronic shutter: 1/50 (1/60)
- 1/100000 SGamma correction: 0.45/1.0 Synchronization method: internal synchronization Lens: standard 2.8mm lens Working voltage: DC12V (Wide Voltage, measured that can be work in 5-13V) Workig current: 70m A (low power consumption) Workig temperature: -20℃--60℃ Humidity: 0%~98% Strong backlighting effect Package included:1 x 1179 800TVL CCD Camera



...

Eachine Wizard X220S FPV Racer Spare Part 5V12V PDBDescription: Brand: Eachine Item name: 5V12V PDBQuantity: 1 pc Usage: for Eachine wizard X220S racing drone Package included:1 x 5V12V PDB ...

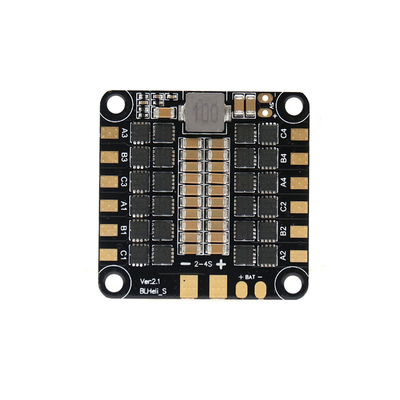

Eachine Wizard X220S Omnibus F4 5.8G 40CH VTX 30A BLheli_S Dshot 600 ESC 800TVL Camera With 30 Runcam 3/ Gopro Session Camera Mount Dear customers, Attention please. The flexible glue anti-vibration motor pad may cause the motor to slip, please check & tighten the screws before flying. Best regards, Banggood Description: Item Specification Eachine Wizard X220 S Wheelbase: 220mm Frame arm: 4mmcarbon fiber Weigh:356g (withoutbattery & camera mount) Takeoffweigh:561g 3K carbon fiber frame kit, 4mm thickness & 15mm width frame arms, the width is 10mm less than Eachine Wizard X220. Frame kit with camera angle scale & 30 camera mount for Runcam 3 Gopro session. Anti-vibration sponges to protect the racer frome crashing. Eachine MN2206 2300KV motor KV: 2300 Max thrust:1100 G Length:35MMNO.OF cell:3-5 S Diameter:28MMFramework:12N14 P Shaft:5mm Propeller:5 inch Weight:28g Eachine 30A BLHELI_S 4 in 1ESCCon. current:30 A Peak current (10S):35 A Input voltage:2-5SBEC:5V output Programming:YESFirmware:blheli_s Weight:28g
Size: 36*36MMEachine 1179 800TVL CCD camera
Colour: violet Sensor: CCDResolution (horizontal center): 800TVLShell

Size: 25mm*25mm Weight: 11g Resolution: PAL: 1980H1080 (2MP) Format: PALVideo output: 1.0 Vp-p/75 Automatic gain control: 0.25/0.50/0.75/1.00 adjustable, up to 55d B.AWB: ON/OFFExposure mode: electron exposure Electronic shutter: 1/50 (1/60)
- 1/100000 SGamma correction: 0.45/1.0 Synchronization method: internal synchronization Lens: standard 2.8mm lens Working voltage: DC12V (Wide Voltage, measured that can




...

Only US$199.99, buy best eachine wizard x 220s fpv racer rc drone omnibus f 4 5.8g 40ch 30a dshot 600 2206 2300kv 800tvl ccd arf sale online store at wholesale price. ...

Eachine Wizard X220S Omnibus F4 5.8G 40CH VTX 30A BLheli_S Dshot 600 ESC 800TVL Camera With 30 Runcam 3/ Gopro Session Camera Mount Dear customers, Attention please. The flexible glue anti-vibration motor pad may cause the motor to slip, please check & tighten the screws before flying. Best regards, Banggood Description: Item Specification Eachine Wizard X220 S Wheelbase: 220mm Frame arm: 4mmcarbon fiber Weigh:356g (withoutbattery & camera mount) Takeoffweigh:561g Packageweigh: 1728g 3K carbon fiber frame kit, 4mm thickness & 15mm width frame arms, the width is 10mm less than Eachine Wizard X220. Frame kit with camera angle scale & 30 camera mount for Runcam 3 Gopro session. Anti-vibration sponges to protect the racer frome crashing. Eachine MN2206 2300KV motor KV: 2300 Max thrust:1100 G Length:35MMNO.OF cell:3-5 S Diameter:28MMFramework:12N14 P Shaft:5mm Propeller:5 inch Weight:28g Eachine 30A BLHELI_S 4 in 1ESCCon. current:30 A Peak current (10S):35 A Input voltage:2-5SBEC:5V output Programming:YESFirmware:blheli_s Weight:28g
Size: 36*36MMEachine 1179 800TVL CCD camera
Colour: violet Sensor: CCDResolution (horizontal center): 800TVLShell

Size: 25mm*25mm Weight: 11g Resolution: PAL: 1980H1080 (2MP) Format: PALVideo output: 1.0 Vp-p/75 Automatic gain control: 0.25/0.50/0.75/1.00 adjustable, up to 55d B.AWB: ON/OFFExposure mode: electron exposure Electronic shutter: 1/50 (1/60)
- 1/100000 SGamma correction: 0.45/1.0 Synchronization method: internal synchronization Lens: standard 2.8mm lens Working voltage: DC12V (Wide Voltage




...

Eachine Wizard X220S FPV Racer Spare Part 4S 14.8V 1500m Ah 75C Battery XT60 Description: Brand: Eachine Item name: 4S 14.8V 1500m Ah 75C Battery Quantity: 1 Capacity (mah)1500 Cell (s)4 Discharge Rate (C)75 Weight (g) 177A (mm)80B (mm)33C (mm)30 Package Included:1 x 4S 14.8V 1500m Ah 75C Battery ...

Eachine Wizard X220S FPV Racer Spare Part 4S 14.8V Battery Charger Description: Brand: Eachine Item name: 4S 14.8V battery charger Input: MAX 19V 1 A Output: MAX 1 A Usage: for 4S battery Package included:1 x battery charger ...

Eachine Wizard X220S FPV Racer Spare Part 5.8G 5d Bi 50W Pagoda Antenna RHCP RP-SMA Male Description: Brand name: Eachine Item name: pagoda antenna Gain: 5d Bi Max. Power: 50w Connector: RP-SMA
Colour: Black Weight: 8.6g Length: 783mm Max. Dia.: 22.41mm Min. Dia.: 11.81mm Frequency: 5.8 G Impedance: 50VSWR: 1.5:1 Polarization: Circular Polarized Radiation: Omni Features: Omni-directional, no dead corner High gain, more stable. Less flash, stonger siginal Package Included :1 x 5.8G 5d Bi 50W Pagoda Antenna
...

Eachine Wizard X220S FPV Racer Spare Part 5.8G 72CH 25MW 200mw 600MW Switchable Transmitter Description: Brand: Eachine Item name: 5.8G 72CH 25MW 200mw 600MW Switchable VTXVideo Format: NTSC/PALChannel: 72CHInput voltage range: 3.7-16 V Mounting holes: M3 Operating Temperature: -10~85℃ Connector: RP-SMA Female (Inner needle) Operational approach:1. Long press the key for 2 seconds, CH will turn to BAND (the character flashes when entering the state). The time of interconversion CH & BAND is 2S, with memory function.2. Long press the key for 4 seconds to adjust RF power level: 25MW (display 1 bar), 200MW (display 2 bars), 600MW (display 3 bars), with memory function.3. Long press the key for 4 seconds, flashing BAND or CH state will turn to RF power level state & flash the bars (8 with 3 bars)4. Notice to the 8 nixie tube, direct supply power for 5V. User Manual, DOWNLOADPackage included:1 x 5.8G 72CH 25MW 200mw 600MW Switchable VTX ...

Eachine Wizard X220S FPV Racer Spare Part Bottom Protective Plate Description: Brand: Eachine Item name: bottom protective plate

...
