Eachine X220HV US UK Water Transfer 5 Inch 220mm Wheelbase Carbon
Fiber 5mm Arm FPV Racing Frame Kit

Product Description

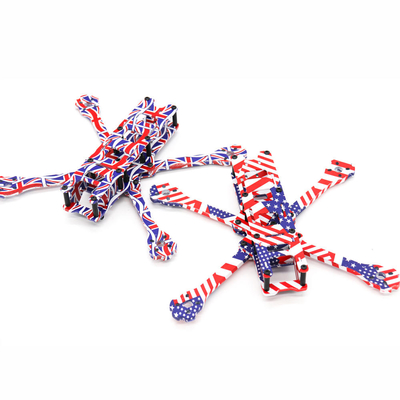

Eachine X220HV US UK Water Transfer 220mm Wheelbase Carbon Fiber 5mm Arm FPV Racing Frame Kit Note: Only Frame Kit. Other parts show on the photo are not included. Specification: Brand name: Eachine Item name: Wizard X220HVUS UKWater Transfer FPV Racing Frame Wheel base: 220mm Upper plate thickness: 2.0mm Frame arm thickness: 5.0mm Bottom plate thickness: 3.0mm X plate thickness: 1.5mm Camera side plate thickness: 1.5mm Camera standoffs: M3*28mm 1 PCFrame standoffs: M3*20mm 8 PCSFrame weight: 125g  Feature: LOW CENTER OF GRAVITY DESIGN with space reduced to 20mm, allowing for faster throttle speeds & more flexible turns CAMERA PROTECTION DESIGN, Front sunken frame design， The purpose is to protect the camera & to adjust the camera DOUBLE-STACK CONFIGURATION, support two 30.5 * 30.5 FC stacks 5MM NARROW ARM DESIGN, The weight of the whole machine is only 125.8g, & the narrow-arm design of 5mm allows the flight speed & endurance to be greatly enhanced.  Recommend parts (package doesn't include): Brushless motor: 2205 / 2206 / 2306 Brushless ESC: 20A-50 A Flight controller: F3 / F4 (mounting holes: 30.5*30.5mm) Battery:AHTECH Infinity 6S 22.2V 1450m Ah, CNHL Mini Star 22.2V 1000m Ah 6S 100 C Propeller: 5 Inch Package included:1 x Wizard X220HVUS UKWater Transfer FPV Racing Frame 1 x Iron screw package: M3*8mm-18pcs, M3*14mm-12pcs, M3 Silver nut-8pcs 1 x Aluminum column package: Bright black Standoffs Spacer Round Column M3*28mm-1pcs， Bright black M3*20mm-8pcs. 1 x Battery Strap
