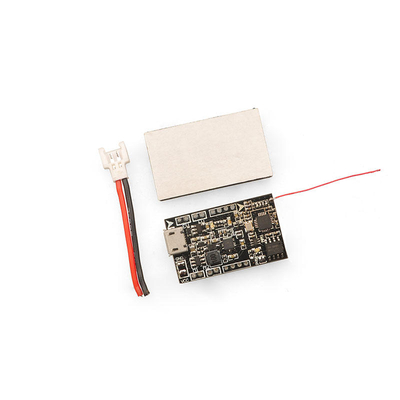

Eachine FLF3_EVO_BRUSHED Flight Control Board Built-in FLYSKY
Compatible PPM 6CH Receiver For QX95 QX90 QX90C

Product Description

Eachine FLF3_EVO Brushed Flight Control Board Built-in FLYSKY Compatible PPM 6CH Receiver Specifications:
Size: 33mm*20mm*4mm Weight: 2g Processor: STM32F303 72 Mhz Gyro Accelerometer: MPU6500 Working Voltage: 3.3v-4.2v (1S Lipo) Firmware Version: Cleanflight 1.13.0 Built-in Receiver: Flysky 6CH PPM Receiver Compatible Transmitter: FS I6, Echine I6, TH9X, DEVO 7E with A7105 Module Default Receiver Channel Map: AETR1234 Default Unlock Channel: AUX1 (Channel 5) Feature:1.FLF3_EVO Brushed Flight controller is an integrated Flysky compatible 6CH PPM protocol receiver, based on F3_EVO Brushed Flight Control Board.2. It is integrated the Flysky receiver into the flight controller, avoid the welding trouble, & the installation is more convenient, suitable for ultra small brush racing quadcopter.3. Support Cleanflight / Betaflight.4. Support Rate Mode & Angle Mode.5. Support FS-I6, Echine I6, TH9X, DEVO 7E with A7105 Module series Transmitter.6. With a 4-axis large current NMOS transistors, operating current of up to 10A or more. Support almost all hollow cup motor, including 1020 coreless motor.7. With VBAT voltage detection, external buzzer interface, LED_ Strip function, also can be configured WS2812 light. The flight controller default has been set up receiver mode, bind & play. Binding:1. Soldering the bind pins, connected the battery, the Blue LED will blinking fast, this indicates the receiver get into the binding mode.2. Holding the bind button, the transmitter automatic entry binding mode.3. The Blue L
