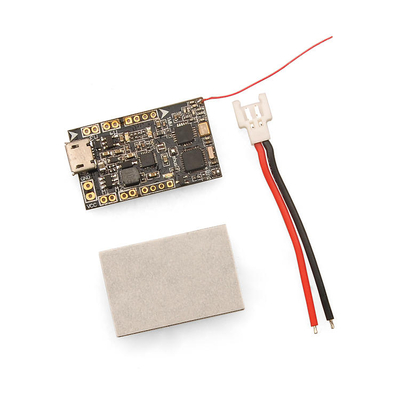

Eachine FRF3_EVO_BRUSHED Flight Control Board Built-in FRSKY
Compatible SBUS 8CH Receiver For QX90 QX95 QX90C

Product Description

Eachine FRF3_EVO Brushed Flight Control Board Built-in FRSKY Compatible SBUS 8CH Receiver Specifications:
Size: 33mm*20mm*4mm Weight: 2g Processor: STM32F303 72 Mhz Gyro Accelerometer: MPU6500 Working Voltage: 3.3v-4.2v (1S Lipo) Firmware Version: Cleanflight 1.13.0 Built-in Receiver: FRSKY 8CH SBUS Receiver Compatible Transmitter: FRSKY X9D/X9D PLUS (D8 Mode) XJT, DJT, DFT, DHTDefault Receiver Channel Map: TAER1234 Default Unlock Channel: AUX1 (Channel 5) Feature:1.FRF3_EVO Brushed Flight controller is an integrated Frsky compatible 8CH SBUS protocol receiver, based on F3_EVO Brushed Flight Control Board.2. It is integrated the FRSKY receiver into the flight controller, avoid the welding trouble, & the installation is more convenient, suitable for ultra small brush racing quadcopter.3. Support Cleanflight/ Betaflight.4. Support Rate Mode & Angle Mode.4. Support FRSKY X9D/X9D PLUS (D8 mode), and XJT (D8 Mode), DJT DFT DHT Transmitter 5. With a 4-axis large current NMOS transistors, operating current of up to 10A or more. Support almost all hollow cup motor, including 1020 coreless motor.6. With VBAT voltage detection, external buzzer interface, LED_ Strip function, also can be configured WS2812 light. The flight controller default has been set up receiver mode, bind & play. Binding:1. Soldering the bind pins, & then connect the battery, the Green LED is solid, this indicate receiver is in binding mode.2. Turn on the transmitter, select D8 mode for the receiver.click the opotion.3. The Green LED on the rec
