Eachine LAL5 228mm 4K FPV Racing Drone Spare Part Frame Screws Flight Controller Screw Specification: Brand name: Eachine Item name: Frame Screws Flight Controller Screw Suitable for Eachine LAL5 228mm 4K FPV Racing Drone Package Included:1 x Frame Screws Flight Controller Screw ...

Eachine LAL5 228mm 4K FPV Racing Drone Spare Part MMCX 5.8 Ghz 2.5 Dbi RHCP Antenna Specification: Brand name: Eachine 5.8 Ghz RHCP Antenna Meterial: PCFrequency: 5800MHZCenter frequency: 5.8 GHz Gain: 2.5 Dbi Band
Width: 500 MHz (5.5-6.0 GHz) Matching: VSWR1.5 (at center frequency) Radiation efficiency: 98% Polarization: RHCPConnector: MMCXWeight: 7.5g Package Included:1 x 5.8 Ghz RHCP Antenna
...

Eachine LAL5 228mm 4K FPV Racing Drone Spare Part TX805 5.8G 40CH FPV Transmitter VTX 7V~24V Smart Audio Specification: Brand name: Eachine Item name:FPV Transmitter VTXFrequency:5.8 G Channels:40CHInput voltage: 7V~24V5V camera supply: 120m A (MAX)----25m W@12V5V camera supply: 200m A (MAX)----200m W@12V5V camera supply: 300m A (MAX)----600m W@12V5V camera supply: 350m A (MAX)----800m W@12 V Extra

Features: Smart audio Power supply: 5V output for Camera Output power: 25m W/200m W/600m W/800m W switchable Antenna connector: MMCXCable connector: Solder pads Dimensions: 36mm*22mm*5mm, 30.5 stackable hole Weight: 8g (excluding antenna) Package Included:1 x FPV Transmitter

...

Eachine LAL5 228mm 4K FPV Racing Drone Spare Part VTX Antenna Fixing Mount Seat Specification: Brand name: Eachine Item name: VTX Antenna Fixing Mount Seat Suitable for Eachine LAL5 228mm 4K FPV Racing Drone Package Included:1 x VTX Antenna Fixing Mount Seat ...

Eachine LAL5.1 225mm 5.1 Inch 4S PNP F405 Bluetooth FC Caddx Tarsier V2 Cam 2507 2600KV 50A Blheli_32 3-6S 5.8 Ghz 25-800m W VTX Specifications: Brand Name: Eachine Item Name: LAL5 225mm 5.1 Inch 4K 4S FPV Racing Drone Wheelbase: 225mm Weight: 411.8g (without battery) Package

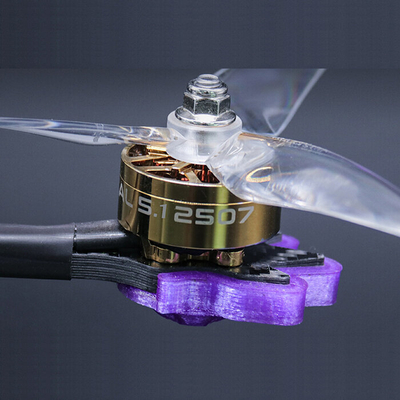

Size: 270x 270x 160mm Package weight: 1034.7g Frame Wheelbase: 225mm Arm thickness: 5mm X plate: 2mm Bottom plate: 2mm Upper plate: 2mm Motor Mode: 2507KV: 2600 Idle current (IO/10V): 2.45 A No.of Cells (Lipo): 3-5 S Peakcurrent: 40 A Max. power: 672 W Max. thrust: 1187g (4s/5) Configu-ration:12N14 P Internal Resistance:0.0321 Stator diameter: 25mm Stator thickness: 7mm
Height: 19.5mm
Width: 31mm Shaft diameter: 5mm Motor mount hole

Size: M3 Recommend propeller: 5-6 Inch Weight: 47g ESC50A 3-6S DSHOT1200 4 IN 1 ESCContinue current: 50 A Burst current: 60A (10s) Input voltage: 3-6SBEC: NO Current sensor: YESMain control chip: STM32F051 Mos chip: TPH1R403 Firmware: Blheli_32 Support DSHOT 150/300/600/1200/MULTISHOT/PWM/ONESHOTMOS:5 * 6 Galvanometer: None Weight: 13.5g Installation hole: 30.5x 30.5mm/3 Dimension: 49 *37mm Flight Controller EACHINE Customized LAL-F405 Bluetooth Flight Controller STM32F405 Chip MPU: MPU6000 (via SPI) Input voltage: support 2-6S Lipo input Onboard Bluetooth module, support APP configuration via smartphone Firmware: MATEKF405 Onboard German Bosch BMP280 high precision barometer Flight control onboard OSD chip, support DMA mode (use F4 MCU to control OSD), you can use Beta Flight to adjust soft Piece





...

Eachine LAL5.1 225mm 5.1 Inch 5mm Arm Carbon Fiber FPV Racing Frame Kit Specification: Brand name: Eachine Item name:LAL5.1 Frame Kit Wheelbase: 225mm Arm thickness: 5mm X plate: 2mm Bottom plate: 2mm Upper plate: 2mm Weight: 99.8g Package Included:1 x LAL5.1 Frame Kit 1 x Battery Strap ...

Eachine LAL5.1 225mm 4K 5.1 Inch 4S FPV Racing Drone Spare Part 5mm Arm Kit Specification: Brand name: Eachine Item name:5mm Arm Kit Meterial: Carbon Fiber Suitable for Eachine LAL5.1 FPV Racing Drone Package Included:1 x 5mm Arm Kit ...

Eachine LCD5802D 5802 5.8G 40CH 7 Inch FPV Monitor with DVR Diversity Receiver Build-in Battery Notice: If the monitor cant record the PAL format video or the image is not complete, please update it as follow:1. Download the file: Upgraded File & put it in Root of TF card 2. Turn on the monitor, it will auto update as the video shows. Reviewby Jim T. Graham (Administratorof R Cgroups.com): http://www.rcgroups.com/forums/showthread.php?t=2679041 Conclusion There is a lot to like about this unit. If your going to have an LCD like this you have to have diversity. The ability to utilize those two receivers when using your goggles is great. The built in lipo is also very handy & I really like that I can plug in an external lipo if needed. With a battery life of around 3 hours it lasted as long as I personally needed it & then some. The micro SD slot is accessible & visible, so its easy to get in & out & know you have one in there. I also really like the hard plastic hood. The speakers are also great if wearing headphones bothers you. Finally, the most important thing for me is the DVR. Its super simple to turn on & off. The only issue I had was the screen would not turn off for me at one point. If this happens to you be aware that there is a reset button on the left side of the unit near the AV out port. It is the type you need to press in with a needle or toothpick. Other than that I had no issues with this unit. It is now my number one LCD/DVR unit that will use to recor ...

Eachine LCD5802D 5802 800*480 7 Inch 5.8G 40CH FPV Diversity Monitor with DVR Build-in Battery + Realacc 5.8 Ghz Pogoda LHCP/RHCP Antenna Notice: If the monitor cant record the PAL format video or the image is not complete, please update it as follow:1. Download the file: Upgraded Fileand put it in Root of TF card 2. Turn on the monitor, it will auto update as thevideoshows. Notice: Before you use it, you should format your SD card to FAT32. There is a screen protector with H on screen, you can remove it.LCD5802D Monitor Description: User Manual Brand Name: Eachine Item Name: LCD5802D Monitor Built-in 5.8 Ghz Dual diversity receiver automatically for best reception Built-in 2CH 5.8 Ghz AV output & 1CH AV input Built-in high performance Li-POLYMER Battery:2000m AH/7.4 V Work status OSD display:RSSI indication ; Battery indicator; Channel indication A key to automatic signal search Support Chinese & English menu Format: JPEG, AVIScreen
Size:7 Screen type:TFT LCD Screen/long life, LED backlight Resolution: 800*480 Brightness:600cd/m 2 View Angle:140/120degree (Horizontal/ Vertical)
Size:180mm x 120mm x 25mm (Note: Sunshield
Height:110mm) Working Voltage:DC 7~16 V Power Consumption:max 650 m A @12 V Battery charging current:850m A @12V (max ) Working temperature:-10℃~+ 65 ℃ Connectors:RP-SMA female (outer needle) Antennas Connectors:RP-SMA male (inner hole) Support up to 32G, C10 SD Card.
Features: With DVR function Built-in Dual Receiver for best reception Dual buffered AV outputs Not affect by 2.4 G Hz R/C Radios AV Re



...

Eachine LCD5802D 5802 800*480 7 Inch 5.8G 40CH FPV Diversity Monitor with DVR Build-in Battery + Realacc 5d Bi 8d Bi Pogoda TFP-Mini Triple Feed Patch LHCP/RHCP Antenna Notice: If the monitor cant record the PAL format video or the image is not complete, please update it as follow:1. Download the file: Upgraded Fileand put it in Root of TF card 2. Turn on the monitor, it will auto update as thevideoshows. Notice: Before you use it, you should format your SD card to FAT32. There is a screen protector with H on screen, you can remove it.LCD5802D Monitor Description: User Manual Brand Name: Eachine Item Name: LCD5802D Monitor Built-in 5.8 Ghz Dual diversity receiver automatically for best reception Built-in 2CH 5.8 Ghz AV output & 1CH AV input Built-in high performance Li-POLYMER Battery:2000m AH/7.4 V Work status OSD display:RSSI indication ; Battery indicator; Channel indication A key to automatic signal search Support Chinese & English menu Format: JPEG, AVIScreen
Size:7 Screen type:TFT LCD Screen/long life, LED backlight Resolution: 800*480 Brightness:600cd/m 2 View Angle:140/120degree (Horizontal/ Vertical)
Size:180mm x 120mm x 25mm (Note: Sunshield
Height:110mm) Working Voltage:DC 7~16 V Power Consumption:max 650 m A @12 V Battery charging current:850m A @12V (max ) Working temperature:-10℃~+ 65 ℃ Connectors:RP-SMA female (outer needle) Antennas Connectors:RP-SMA male (inner hole) Support up to 32G, C10 SD Card.
Features: With DVR function Built-in Dual Receiver for best reception Dual buffered AV outputs Not affe



...
