Eachine Minicube F3 6DOF Flight Controller V1.1 Integrated Betaflight OSD 2-3S 20mm*20mm For Aurora 68 90 100 Description: Brand: Eachine Item name: Minicube F3 6DOF Flight Controller V1.1
Size: 27mm*27mm*5mm Mount hole: 20mm*20mm Working voltage: 2-3S Lipo Processor: STM32 F303 MCUSensor: SPI Sensor MPU6000 Built-in Betaflight OSD (Batt voltage, RSSI, Fly mode, Flytime, Craft name etz.) Firmware version: Betaflight 3.1 Dshot ready Target: Omnibus F3 This V1.1 version comes with SH1.0 plug instead of USBinterface, integratedfiltration module. Mini Cube F3 V1.1 6DOF integrate OSD Manual Package included:1 x Minicube F3 6DOF Flight Controller V1.1
...

Eachine Minicube Frsky Compatible 2.4G 8CH Receiver 20mm*20mm Built-in Buzzer Description: Brand name: Eachine Item Name: Minicube Frsky Compatible receiver Frequency range: 2.403-2.479 Ghz Channels: 8CHWork mode: D8 Mode Output: SBUSAntenna length: 100mm No ground interference (Transmitting & receiving 1 m from the ground): 500m Built-in Buzzer (Low voltage alarm) Configure by Betaflight configurator Working current: 80m A Dimensions: 27*27*7mm Weight: 3.5g Compatible with FRSKY ACCSTCompatible with X9D (Plus)DJT/DFT/DHTTelemetry: RSSI, 1S-3S voltage (A1), 1S-3S voltage (A2) Minicube Frsky D8 mode Sbus 2.4G receiver manual Package included:1 x Minicube Frsky Compatible receiver ...

Eachine Red Devil 105mm FPV Racing Drone Spare Part Nano 5.8 Ghz 25/100/200m W 40CH 3.3~5.5V VTXSpecification: Brand name: Eachine Item name: VTXNano Small size, lighter & easy to mount in a micro or whoop drone Output power: 25~200mw switchable Frequency: 40CHInput voltage: 3.3V 5.5 V Current consumption: 300m A (type) Antenna: RG178 antenna U.FL interface Frequency: 5.8 G Hz 5bands 40 channels With Raceband Smartaudio ready
Size:16mm*16mm Weight: 1.2g without antenna User Manual, Click here. Package Included:1 x VTXNano
...

null Overview: Eachine NANO V2 VTX is simulated 5.8G ISM band transmission with stable output power, Support microphone, long transmission distance & strong power filter. It can ensure that the image has no snowflake, no stripes under the maximum throttle situation. Meanwhile, Eachine NANO VTX has remote frequency point control of remote control OSD interface, does not interfere with fellows when powered on, and support 8 peoples above flying at the same time super function. Specifications: Brand Name: Eachine Item Name: Nano V2 VTXFrequency: 5.8 G Hz 6 bands, 48 channels Input Voltage: DC 5 V Output Power: PIT/25m W/100m W/200m W/400m W switchable Control Mode: BFOSD Control (RX)/ Button Video System: NTSC/PALAntenna Interface:IPEX
Size: 15mm x 14mm x 4mm Weight: 3g Output Power:5V/PIT@75m A5V/25m W@270m A/14d Bm 5V/100m W@350m A/20d Bm 5V/200m W@450m A/23d Bm 5V/400m W@530m A/26d Bm

Features:- 5.8 G Hz 48CH FPV transmitter- 5V input voltage- 25/100/200/400m W power switchable- 5.8G ISM b&- 1-2km long transmission distance- Support OSD configuring via Betaflight flight controller- Support microphone- Support 8 drones flying at the same time without interference- It can ensure that the image has no snowflake, no stripes under the maximum throttle situation. Frequency Table (Mhz):FR/CHCH1 (○○○)CH2 (○○●)CH3 (○●○)CH4 (○●●)CH5 (●○○)CH6 (●○●)CH7 (●●○)CH8 (●●●) Frequency A (○○●)58655845582558055785576557455725 Frequency b (○●○)57335752577157905809582858475866 Frequency E (○●●)57055685566556455885590559255945 Frequency F (●○○)57405760578058


...

Overview: Eachine NANO VTX is simulated 5.8G ISM band transmission with stable output power, long transmission distance & strong power filter. It can ensure that the image has no snowflake, no stripes under the maximum throttle situation. Meanwhile, Eachine NANO VTX has remote frequency point control of remote control OSD interface, does not interfere with fellows when powered on, and support 8 peoples above flying at the same time super function. Upgraded V2 Version With Microphone, Click Here Specifications: Brand Name: Eachine Item Name:NANO VTXOutput Power: PIT/25m W/100m W/200m W/400m W Switchable Control Mode: BFOSD Control (RX)/ Button BAT: 5 V Video System: NTSC/PALAntenna: IPEX
Size: 14MM*15MM*4MMWeight: 1.5g

Features:- 5.8 G Hz 48CH FPV transmitter- 5V input voltage- 25/100/200/400m W power switchable- Support OSD configuring via Betaflight flight controller Frequency Table (Mhz):FR/CHCH1 (○○○)CH2 (○○●)CH3 (○●○)CH4 (○●●)CH5 (●○○)CH6 (●○●)CH7 (●●○)CH8 (●●●) Frequency A (○○●)58655845582558055785576557455725 Frequency b (○●○)57335752577157905809582858475866 Frequency E (○●●)57055685566556455885590559255945 Frequency F (●○○)57405760578058005820584058605880 Frequency r (●○●)56585695573257695806584358805917 Frequency L (●●○)53625399543654735510554755845621 English Manual, Click Here Package Included:1x Eachine NANO VTX 5.8 G Hz 48CH 25/100/200/400m W Switchable FPV Transmitter 1x IPEX Antenna 1x User Manual


...

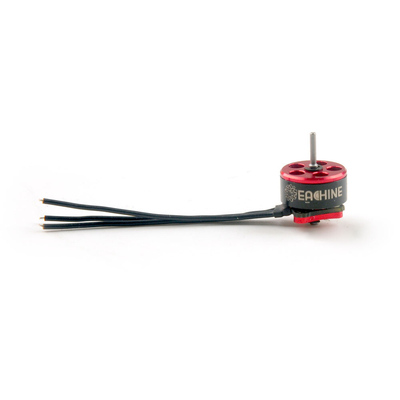

null Eachine NC1204 1204 5000KV 3-4S Brushless Motor for Viswhoop Whoop Drone 60mm Wire JST1.25 Plug Specification: Brand Name: Eachine Mode: NC1204KV option: KV5000 Configu-ration:9N12 P Stator Diamter:12mm Stator Length:4mm Shaft Diameter:Φ1.5mm No.of Cells (Lipo):support 3-4s Motor Dimension (Dia.* Len):Φ15mm*16.5mm Weight (g):5.5g Package Included:1 x NC1204 1204 5000KV 3-4S Brushless Motor ...

Note: The goggles of CN warehouse has been upgraded to 5.8 Ghz 40CH VR009 Goggles on May 27th. Other warehouse is VR005 Goggles. Novice-I biginner PID & Rate CLI comm&. Please click here to download & setting. Add external SBUS IBUS DSM2 DSMX Receiver for Novice-I FC, Click here. Specifications: Brand Name: Eachine Item Name: Novice-I75mm 1-2S brushless whoop Drone RTFFly more Wheelbase: 75mm
Size: 98mm*98mm*48mm Weight: 33g (without battery)
Features: Nano X F4 pro flight controller Powerful & smoothly Betaflight OSD support, easy to get RSSI, Voltage, current from your goggles Camera Angle adjustable VTX power switchable 25mw~200mw Smartaudio ready, change VTX bands, powers, channels via OSDReady to fly Compatible both for 1s-2s Lipo/LIHVSpare parts specifications: Motor Mode: EX1102KV options: KV13500 Configu-ration:9N12 P Stator Diamter:11mm Stator Length:2mm Shaft Diameter: Φ1.5mm Motor Dimension (Dia.* Len):Φ13.5mm*16mm Weight (g):2.8g Flight controller MCU:STM32F411CEU6 (100MHZ, 512K FLASH) Sensor: MPU-6000 (SPI connection) Board

Size: 28.5 * 28.5MMPower supply: 1-2S battery input (DC 3.5-8.7V) Built-in 5A (each) Blheli_S 4in 1 ESC Dshot 600 ready Built-in Frsky D8 SPI receiver Built-in Betaflight OSD (SPI Control) Built-in Current meter Max 28 A Current meter scale set to 1175 Built-in 5V 1A BECBuilt-in voltage detection Onboard 4in 1 ESCMCU upgraded to EFM8BB21 Power supply: 2-4S Li Po/ Li Po HV (7v/17v) Current: 5A continuous peak 6A (5 seconds) Support BLHeli Suite programmable Factory firmware: S_H_50_REV16_7



...

Eachine Novice-I 75mm FPV Racing Dorne Spare Part WT8 2.4 Ghz Transmitter Specification: Brand Name: Eachine Model: WT8 Mode: Mode 2 (Left hand throttle) Frequency:2.4 Ghz Frequency Hopping: Latest FHSS (64 points, 3.6ms) Channels: 8channels Resolution: 4096 Transmission: 100mw (20dbm) Distance: 1000m (depends on actual situation) Working Voltage:4.2-6v (AAA1.5v*4) Working current: 100-150m A
Size:162*110*62MM
Colour: Black Package Included:1 x WT8 Radio Transmitter

...

Eachine Novice-I 75mm FPV Racing Drone Spare Part 3.8V 300m Ah 40C/80C Lipo Battery Specification: Brand name: Eachine Capacity: 300m Ah Voltage: 3.8v Continuous Discharge Rate: 40 C Instantaneous discharge rate: 80C
Size: 55mmx 11.5mmx 6.5mm Weight: 7.7g Connector: PH2.0 Notes: Need 2pcs batteries for Series circuit Package Included:1 x 3.8V 300m Ah 40C/80C Lipo Battery
...

Eachine Novice-I 75mm FPV Racing Drone Spare Part Canopy Camera Mount Specification: Brand Name: Eachine
Colour: Transparent
...
