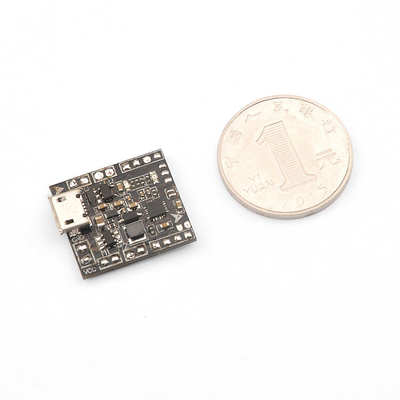

Eachine Tiny 32bits F3 Brushed Flight Control Board Based On SP RACING
F3 EVO For Micro FPV Frame
Eachine Tiny 32bits F3 Brushed Flight Control Board Based On SP RACING F3 EVO For Micro FPV FrameDescription:Brand Name: EachineItem Name: TinySPRACINGF3_EVO_BRUSHflightcontrollerDimension: 23mm*19.5mm*5mmThickness: 1.2mmWeight: 2gFeatures:1. F3_EVO_Brush is in the revision on the basis of the F3 EVO SP RACING, it is a 32bits brush flight controller based on SP RACING F3 EVO firmware.2. The flight control support 1S (4.2V).3. Independent design of the circuit structure, comes with the Voltagecontrol technology, 1Slipobatteryinput, theUART1/2/3output5V, DSMportoutput3.3V.4. Using STM32F303CCT6 + MPU6500, advanced hardware platform F3 guarantee more stable flight.5. WithalargecurrentNMOStransistors, operatingcurrentofupto10Aormore.EachBrushedmotorisequippedwithfreewheelingdiodes.6.
Support for PPM, SBUS, DSM/DSM2/DSMX receiver input signal.7.In support of the world almost all hollow cup motor, including 1020 coreless motor.Notice:ThisTinyF3EVO_BrushflightcontrollerisonlyuseforBRUSHMOTOR, NotcompatibleforBRUSHLESSMOTOR.Receiver configuration:1. DSM receiver soldered directly to the DSM interface 3.3V, GND, RX3, Enable Seria_RX for UART3 and Set Receiver mode RX_SERIAL, Select Spektrum1024(DSM/DSM2) orSpektrum2048(DSMX)inCleanflightconfigurator.2. SBUSreceiverweldedtotheUART2GND, +5V, RX2.ThenEnableSeria_RXandSetReceivermodeRX_SERIAL, SelectSbussignalinCleanflightconfigurator.3. PPMreceiverweldedtotheUART2GND, +5V, RX2.ThensetReceivermodetoRX_PPMinCleanflightconfigurator.FIRMWARE FLASH Ste
Support for PPM, SBUS, DSM/DSM2/DSMX receiver input signal.7.In support of the world almost all hollow cup motor, including 1020 coreless motor.Notice:ThisTinyF3EVO_BrushflightcontrollerisonlyuseforBRUSHMOTOR, NotcompatibleforBRUSHLESSMOTOR.Receiver configuration:1. DSM receiver soldered directly to the DSM interface 3.3V, GND, RX3, Enable Seria_RX for UART3 and Set Receiver mode RX_SERIAL, Select Spektrum1024(DSM/DSM2) orSpektrum2048(DSMX)inCleanflightconfigurator.2. SBUSreceiverweldedtotheUART2GND, +5V, RX2.ThenEnableSeria_RXandSetReceivermodeRX_SERIAL, SelectSbussignalinCleanflightconfigurator.3. PPMreceiverweldedtotheUART2GND, +5V, RX2.ThensetReceivermodetoRX_PPMinCleanflightconfigurator.FIRMWARE FLASH Ste
