Eachine Tyro 129 Spare Part GPS F4 Flight Controller AIO OSD BEC for RC Drone FPV Racing Specification: Brand Name: Eachine Model: GPS F4 Item Name: Main control chip: STM32F405 Gyroscope: MPU6000 Barometer: BMP280 Firmware: Support betaflight / INAV firmware Integrated OSD, support betaflight configuration DMA Mode (F4 MCU controls OSD)- Support PPM /DSM2/X / IBUS/ SBUS/ XBUS receiver- with 10V @ 1.2A BEC Output, for VTX or Camera- LED_STRIP solder pin, changing LED flashing modecolor via flight controller- Buzzer solder pin, support connect external alarm buzzer- with voltage detection port (BAT) & current detection port (CRT), to detect batterys voltage & current ( Need connect extra current sensor module)- with Micro SD Blackbox Slot- with 5 UARTI2C Port, for connecting GPS Module- Plugs connector / Soldering Pads are Optional for all connector Port
Size: 37x 37mm Mounting Hole: 30.5x 30.5mm Weight: 6.8g Application: Original Parts for Eachine TYRO129 FPV Racing Drone Package Included:1x Eachine GPS F4 Flight Controller Board 1x Cable
...

Eachine Tyro 129 Spare Part M3x 14 M3x 6+6 M3 Screw Nut for RC Drone Specification: Brand Name: Eachine Item Name: M3x 14 M3x 6+6 M3 Screw Nut Set Usage: Original Parts for Tyro 129 FPV Racing Drone Packge Included:12x M3x 6+6 Standoff 4x M3x 14 Screw 4x M3 Screw Nut ...

Eachine Tyro 69 105mm F4 OSD 2.5 Inch 2-3S DIY FPV Racing Drone PNP w/ Caddx 1200TVL Camera Click here to buy Spare Parts. Notice:1. This is the DIY version that comes unassembled.2. Comes without battery, charger, receiver or radio transmitter. Specification: (Manual) Brand Name: Eachine Model: Tyro 69 Item Name:2.5 Inch DIY FPV Racing Drone Version: PNP (Without Receiver, Battery & Radio Transmitter) Drone Wheelbase: 105mm Arm Plate Thickness: 2mm Max. Propeller: 2.5 Inch
Material: 3K Carbon Fiber 3D Printed TPU Parts Weight: 47.9g (without battery) Eachine F411 OSD Flight Controller Main control chip: STM32F411IMU: MPU6000 Integrated Betaflight OSDFirmware: Matek F411SBUS/ IBUS/ DSMX / UART Shared: UART1-RXBEC: 5V 2AWS2812 Led Strip: Yes Beeper: Yes Mounting Hole: 20x 20mm- Supportbetaflight/ cleanflight/ inav firmware-Plugs connector / Soldering Pads are Optional for all connector Port Eachine 20A BL_S 4 In 1 ESCMCU:48 M Hz EFM8BB21F16 G Input Voltage: 2-6 S Con. Current: 20 A Burst Current: 25A (10S)BEC: NO
Size:28.7x 30.7mm Mounting Hole: 20x 20mm Weight: 24g Support DShot 150/300/600, PWM, One Shot 125, One Shot 42, Multi Shot (DShot 600 in default out from factory) Eachine 1104 8600KV 2-3S Motor KV: 8600KVLipo cell: 2-3 S Weight: 4.3g
Colour: Orange Max. Con. Current: 13 A Max. Con. Power: 144 W Configu-ration: 9N/12 P Motor Resistance: 137m Stator Diameter: 11mm Stator Thickness: 4mm Motor Diameter: 13.8mm Motor Body Length: 11.5mm Overall Shaft Length: 17mm Bolt Holes Spacing: 9mm Bolt Thread: M265mm 2-Blade Propeller Item N


...

Eachine Tyro 69 Spare Part 105mm Wheelbase 2mm Thickness Bottom Plate for RC Drone Specification: Brand Name: Eachine Item Name:105mm Wheelbase 2mm Thickness Bottom Plate Wheelbase: 105mm Plate Thickness: 2mm
Material: Carbon Fiber Applciation: Original Part for Eachine Tyro 69 FPV Racing Drone Packaging Included:1x Bottom Plate
...

Eachine Tyro 69 Spare Part 1104 8600KV 2-3S Brushless Motor for RC Drone FPV Racing Specification: Brand Name: Eachine Item Name:1104 8600KV 2-3S Brushless Motor KV: 8600KVVersion: CW Screw Thread Input Voltage: 2-3S Lipo Configuration: 9N/12 P Stator Diameter: 11mm Stator

Height: 4mm Shaft Diameter: 1.5mm Weight: 4.3g Maximum Power: 144 W Installation Hole: M2 Installation Hole Spacing: 9mm Application: Original Parts for Eachine Tyro 69 DIY FPV Racing Drone Packiage Included:1x Eachine 1104 8600KV Motor 5x M2*4 Screw

...

Eachine Tyro 69 Spare Part 50mm XT30 Plug Connector Power Cable for RC Drone Specification: Brand Name: Eachine Item Name:XT30 Plug Connector Power Cable Length: 50mm Type: Male Head Applicaiton: Original Parts for Eachine Tyro 69 FPV Racing Drone Package Included:1x XT30 Connector Cable ...

Specification: Brand Name: Caddx Model: Beatle V2 (Special Design Version for Tyro 69) Item Name:1200TVL 1/3 CMOS FPV Camera AIO 5.8G 48CH 25m W VTXImage Sensor: 1/3 CMOSHorizontal Resolution: 1200 TVLTV System: PALImage: 4:3 Lens: 2.1mm Dimensions: 14x 14x 16mm Weight: 4.1g (Camera + VTX) Output Power: 25m W Channel: 48CHInput Voltage: 2.9-5.5 V Support Smart Audio VTX

Size: 15x 14mm Application: Original Parts for Eachine Tyro 69 FPV Racing Dorne Package Included:1x 1200TVL FPV Caemra AIO 48CH VTX

...

Eachine Tyro 69 Spare Part Flight Controller ESC 6P Connection Cable Wire for RC Drone FPV Racing Specification: Brand Name: Eachine Item Name: 6P Cable for conencting fc to esc Applciation: Original Part for Eachine Tyro 69 FPV Racing Drone Package Included:1x 6P Conenction Cable ...

Eachine Tyro 69 Spare Part M2x 25 M2x 4 M2 Screw Anti-vibration Damping Ball Standoff for RC Drone Specification: Brand Name: Eachine Item Name:M2x 25 M2x 4 M2 Screw Anti-vibration Damping Ball Application: Original screws for Eachine Tyro 69 FPV Racing Drone Packaging Included:16x M2*4 screw 12x M2 isolation & shock absorber screw 4x M2 Nylon Nut 4x M2*25 screw ...

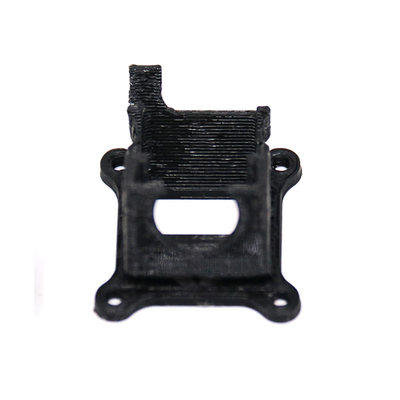

Eachine Tyro 69 Spare Part Upgrade V2 2g TPU Canopy Camera Mount for RC Drone Notice: ONLY include canopy. Other Parts are NOT Included. Specification: Brand Name: Eachine Item Name: Frame Canopy Camera Mount
Colour: Black Weight: 2.1g Application: Upgrade Part for Eachine Tyro 69 FPV Racing Drone Other recommend canopy: URUAV UR65 Canopy / Eachine US65/UK65 Canopy Package Included:1x Canopy
...
