Eachine Tyro 79 140mm 3 Inch DIY Version FPV Racing RC Drone w/ F4 OSD 20A BLHeli_S 700TVL Camera 5.8G 40CH 200m W VTXNote:1. This is the DIY version that comes unassembled.2. Comes without battery, charger, receiver or remote control. Upgrade in new VTX Module. More details, click here Item Specification 140mm Racing Frame Kit Wheel base: 140mm Frame arm thickness: 3mm Upper plate thickness: 1mm Side plate thickness: 1mm Frame kit

Material: 3K carbon fiber CNC 6065 aluminium 1607 2800KV 2-4S Brushless Motor KV: 2800KVLipo cell: 2-4 S Weight: 17.8g (
Includes: wires) Output shaft length: 14mm Maximum pull: signal 630g (4S 3030 4-blade propeller) Maximum power: 350 W Configu-ration: 9N/12 P Mounting holes distance: 12*12mm Mounting holes: M2 Bearing: NSKN52 Strong Nd Fe B Magnet Recommend propeller: 3 inch 4 IN 1 20A BLHeli_S ESCContinuous current: 20 A Peak current: 25A (10S)BEC output: no Input voltage: 2-4 S Main control chip: 48mhz EFM8BB2 Firmware upgrade: Supports Dshot 600/BLHeli_S/ Oneshot 125MOS: 3*3MOS type: vs 3610ae 30v 64a Customized F4 Flight Controller Main control chip: STM32F411 Sensor: ICM20602 6-axis Integrated OSDPPM/DSM/IBUS/UAR share: UART1-RXMounting holes distance: 20*20mm Weight: 24g PID circulation rate & refresh rate can up to 32k Hz Supports Betaflight/cleanflight/inav firmware 700TVL CMOS Camera Case

Size: 19mm*19mm Weight: 9.5g Total pixels: PAL: 1020H596V (0.61MP); NTSC: 1020H508V (0.52MP) Effective pixels: PAL: 976H582V (0.57MP); NTSC: 976H494V (0.48MP) Signal system: PAL/NTSC switchable Resolution r




...

Eachine Tyro 79 140mm 3 Inch DIY Version FPV Racing RC Drone Spare Part 4 IN 1 20A BLHeli_S ESC 2-4S Description: Brand name: Eachine Item name: 4 IN 1 20A BLHeli_S ESCContinuous current: 20 A Peak current: 25A (10S)BEC output: no Input voltage: 2-4 S Main control chip: 48mhz EFM8BB2 Firmware upgrade: Supports Dshot 600/BLHeli_S/ Oneshot 125MOS: 3*3MOS type: vs 3610ae 30v 64a Package included:1 x 4 IN 1 20A BLHeli_S ESC ...

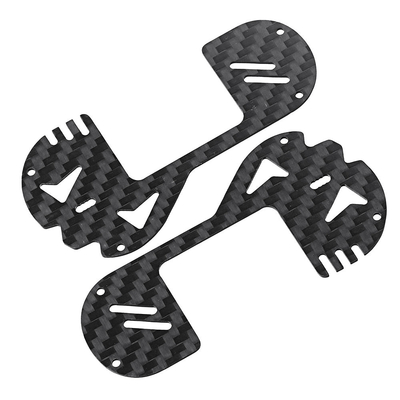

null Description: Brand Name: Eachine Item Name: Tyro 79 bottom plate
Material: carbon fiber Thickness: 3mm Quantity: 1
...

Eachine Tyro 79 140mm 3 Inch DIY Version FPV Racing RC Drone Spare Part Flytower Screw Set Description: Brand name: Eachine Item name: flytower screw set Package included:4 x M2*5*6 nylon insulated column 4 x M2 nylon nut 4 x M2*5*6 Matek damping screw ...

Eachine Tyro 79 140mm 3 Inch DIY Version FPV Racing RC Drone Spare Part Screw Set M2*4 M2*5 M2*6 M2*8 Description: Brand name: Eachine Item name: tyro 79 screw set Package included:25 x M2*6 hexagon socket head cap screw 13 x M2*5 hexagon socket head cap screw 3 x M2*8 hexagon socket head cap screw 5 x M2*6+6 nylon screw 3 x M2*4 truss head screws with fine thread ...

Eachine Tyro 79 140mm 3 Inch DIY Version FPV Racing RC Drone Spare Part Wire Cable Set Description: Brand name: Eachine Item name: tyro 79 wire set Package included:1 x XT30 power cable 45mm 18AWG1 x camera cable 1 x VTX cable 1 x receiver cable 1 x flight controller ESC cable ...

Eachine Tyro 79 140mm 3 Inch DIYVersion FPV Racing RC Drone Spare Part 1607 2800KV 2-4S Brushless Motor Description: Brand name: Eachine Item name: 1607 2800KV Brushless Motor KV: 2800KVLipo cell: 2-4 S Weight: 17.8g (
Includes: wires) Output shaft length: 14mm Maximum pull: signal 630g (4S 3030 4-blade propeller) Maximum power: 350 W Configu-ration: 9N/12 P Mounting holes distance: 12*12mm Mounting holes: M2 Bearing: NSKN52 Strong Nd Fe B Magnet Recommend propeller: 3 inch Package included:1 x 1607 2800KV Brushless Motor
...

Eachine Tyro 79 140mm 3 Inch DIY Version RC Drone Spare Part 5.8G 40CH 25/100/200/300mw Switchable VTXDescription: Brand name: Eachine Item name: 5.8G 40CH25/100/200/300mw VTXSupports TBS Smart Audio Transmitting power:25/100/200/300mw switchable Channel: 40CHFull video format: NTSC/PALInput voltage: 7V~24 V Power dissipation: +12V/600MW
Size: 25206mm Weight: 3.2g (except antenna) With copper pipe mini antenna (ipex antenna) Make sure the antenna is installed at the output end before powering up to avoid damaging internal components. Usage: for tyro 79 140mm 3 inch DIY version RC drone Vtx Setting:1. Long Press Button 2S, entering into CH Setting Mode.2. Red Light flash 1 time, Green Light flash 1-8 time (CH1-CH8). At this time, a short press of the key CH plus 1 will flash corresponding number of times. CH1-8 cycle.3. Then, Long Press 2S again, entering into Band Setting Mode. Red Light flash 2 times, Green Light flash 1-5 time (A-B-E-FS-Race Band).4. Long Press 2S once again, entering into Power Setting Mode. Red Light flash 3 times, Green Light flash 1-4 times (Power 25m W- 100m W-200m W-300m W)5. Finally, Long Press 2S, Logout setting mode. Or it will logout automatically while no operation after 30S. Package included:1 x 5.8G 40CH 25/100/200/300m WVTX1 x antenna 1 x cable
...

Eachine Tyro 79 140mm 3 Inch DIY Version FPV Racing RC Drone Spare Part Customized F4 Flight Controller Integrated OSDDescription: Brand name: Eachine Item name: F4 Flight Controller Main control chip: STM32F411 Sensor: ICM20602 6-axis Integrated OSDPPM/DSM/IBUS/UAR share: UART1-RXMounting holes distance: 20*20mm Weight: 24g PID circulation rate & refresh rate can up to 32k Hz Supports Betaflight/cleanflight/inav firmware Package included:1 x F4 Flight Controller ...
