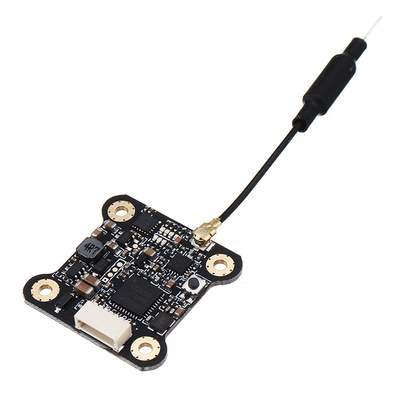

Eachine Tyro79 3 Inch DIY Version RC Drone Spare Part 5.8G 40CH
0mW/25mw/100mw/200mw Switchable VTX

Product Description

Eachine Tyro 79 140mm 3 Inch DIY Version RC Drone Spare Part 5.8G 40CH 25/100/200/300mw Switchable VTXDescription: Brand name: Eachine Item name: 5.8G 40CH25/100/200/300mw VTXSupports TBS Smart Audio Transmitting power:25/100/200/300mw switchable Channel: 40CHFull video format: NTSC/PALInput voltage: 7V~24 V Power dissipation: +12V/600MW
Size: 25206mm Weight: 3.2g (except antenna) With copper pipe mini antenna (ipex antenna) Make sure the antenna is installed at the output end before powering up to avoid damaging internal components. Usage: for tyro 79 140mm 3 inch DIY version RC drone Vtx Setting:1. Long Press Button 2S, entering into CH Setting Mode.2. Red Light flash 1 time, Green Light flash 1-8 time (CH1-CH8). At this time, a short press of the key CH plus 1 will flash corresponding number of times. CH1-8 cycle.3. Then, Long Press 2S again, entering into Band Setting Mode. Red Light flash 2 times, Green Light flash 1-5 time (A-B-E-FS-Race Band).4. Long Press 2S once again, entering into Power Setting Mode. Red Light flash 3 times, Green Light flash 1-4 times (Power 25m W- 100m W-200m W-300m W)5. Finally, Long Press 2S, Logout setting mode. Or it will logout automatically while no operation after 30S. Package included:1 x 5.8G 40CH 25/100/200/300m WVTX1 x antenna 1 x cable
