Eachine Wizard X220HV FPV Racing RC Drone Spare Part 110DB 5V BB Alarm Buzzer Module Description: Brand name: Eachine Item name: 110DB 5V BB alarm buzzer module Working voltage: 5 V Standby battery: lipo 4.2V 100mah Loudness: 110DB
Size: 36 * 36mm Weight: 8g Package included:1 x 110DB 5V BB alarm buzzer module
...

Eachine Wizard X220HV FPV Racing RC Drone Spare Part 2306 1650KV 3-6S Brushless Motor Description: Brand name: Eachine Item name: 2306 1650KV brushless motor Motor KV: 1650 RPM/VIdle current (Io/10V): 1.05 A Lipo cell: 3-6 S Weight: 35g Max continuous current: 36 A Max continuous power: 860 W Max thrust: 2350g Configu-ration: 12N/14 P Stator diameter: 23mm Stator thickness: 6mm Motor diameter: 29mm Motor body length: 18.4mm Overall shaft length: 32.9mm Prop adapter shaft: M5 Bolt holes spacing: 16mm Bolt thread: M3 Propeller: 5-6 inch Package included:1 x 2306 1650KV brushless motor ...

Eachine Wizard X220HV FPV Racing RC Drone Spare Part 45A 4 In 1 ESC 2-6S BLHeli_S Dshot 600 Description: Brand name: Eachine Item name: 45A 4 In 1 BLHeli_S ESCIntegrated PDBWorking voltage: 2-6S Lipo Continuous working current: 4*45 A Peak current: 4*50A (6S) Main control chip: 48 Mhz EFM8BB2 Firmware: BLHeli_S Supports Dshot 600MOS: 5*6 Package included:1 x 45A 4 In 1 BLHeli_S ESC ...

Eachine Wizard X220HV FPV Racing RC Drone Spare Part 5.8G 40CH 0m W/25mw/200mw/600mw VTX Switchable Description: Brand name: Eachine Item name: 5.8G 40CH 0m W/25mw/200mw/600mw VTX Switchable Output power & transmission distance: 0.5km@25m W, 1km to 200m W, 2km to 600m W Transmission power: 0m W / 25m W / 200m W / 600m W Full video format: NTSC / PALInput voltage & power dissipation: 7V ~ 24V, + 12V / 260m A @ 600m W
Size: 36*36*6mm Weight:7g (excluding antenna) With output power self-check function. Nixie tube SCAN: frequency point (1-8), frequency band (AE), power (1-3, 0=0mw, 1=25mw, 2=200mw, 3=600mw) Package included:1 x 5.8G 40CH 0m W/25mw/200mw/600mw VTX Switchable
...

Eachine Wizard X220HV FPV Racing RC Drone Spare Part Antenna Fixed Mount 3D Printing Description: Brand name: Eachine Item name: antenna fixed mount Quantity: 1 PCUsage: for wizard x 220hv FPV racing RC drone Package included:1 x antenna fixed mount ...

Eachine Wizard X220HV FPV Racing RC Drone Spare Part Speedy Bee bluetooth Module Description: Brand name: Eachine Item name: Speedy Bee bluetooth Module Support Betaflight configurator Speedybee App: i OS 10.0+; iPad 3; Androd 4.3+ Output power: 0d BMSensitivity: -94d BMExternal interface: BROADCAST SWITCH, TX, RX, 3-5V DC Input, GNDTransmission speed: Bidirectional 1K/ Sbluetooth protocol: bluetooth

Specification V4.0 BLETransmission distance: 30 meters Frequency range: 2400 M Hz-2483.5 M Hz (2.4G ISM Band) Baud rate: 2400, 4800, 9600, 14400, 19200 (default), 28800, 38400, 57600, 76800, 115200, 230400 Working voltage: 3.3V-5.0 V Working current: 8.3m A-10m A Weight: 1.4g
Size: 27*15*4.5mm Package included:1 x Speedy Bee bluetooth module


...

Eachine Wizard X220HV FPV Racing RC Drone Spare Part Standoffs M3*28 M3*20 Description: Brand name: Eachine Item name: standoffs Camera fixing standoffs: M3*28 Frame standoffs: M3*20 Usage: for wizard x 220hv FPV racing RC drone Package included:1 x M3*28 standoffs 8 x M3*20 standoffs ...

Eachine Wizard X220HV FPV Racing RC Drone Spare Part Camera Mount 30 Supports Runcam 3 3S Gopro Session Description: Brand name: Eachine Item name: camera mount Copor: black Compatible with Runcam 3 3S Gopro session action camera Package included:1 x camera mount ...

Eachine Wizard X220S 220mm FPV Racing X Frame 4.0mm Frame Arms Carbon Fiber The first 100 items of Eachine Wizard X220S frame kit come without PDB boards, after the first 100 items it will come with a PDB. Description: Brand: Eachine Item name: wizard X220S FPV racing frame
Material: carbon fiber Wheel base: 220mm Frame arm: 4mm thickness, 15mm width Thickness of upper plate: 1.5mm Thickness of lower plate: 2.0mm Weight: 131g Configuration: regular XPackage included:1 x Eachine wizard X220S FPV racing frame
...

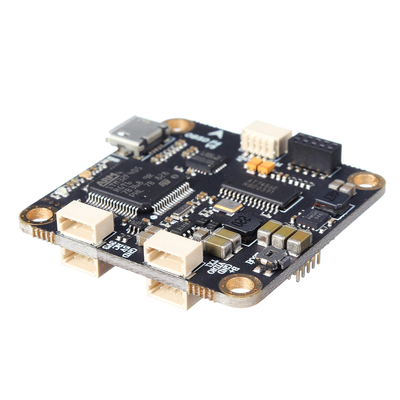

Eachine Wizard X220S FPV Racer Customized Version Omnibus F4 V3-S Betaflight 3.0.1 Flight Controller Description: Brand: Eachine Item name: omnibus F4 flight controller
Size: 36x 36mm Mount holes: 30.5x 30.5mm STM32 F405 MCU, Runs Betaflight 3.0.1 firmware, could run faster loop time. Using F4 MCU controls OSD over SPI bus in DMA mode.OSD Configation has been included in Betaflight GUI.SBUS/PPM input (Pinheaders)6PWM output (1-4 Pinheaders & Sh 1.0 Plug, 5-6 as Pinheaders) With BAROSPI Sensor MPU6000 Included 128 Mbit Flash, please always use BEC for the FC. Supported by BETAFLIGHT & d Ronin Package included:1 x omnibus F4 flight controller
...
