Eachine Wizard X220HV FPV Racing RC Drone Spare Part 5.8G 40CH 0m W/25mw/200mw/600mw VTX Switchable Description: Brand name: Eachine Item name: 5.8G 40CH 0m W/25mw/200mw/600mw VTX Switchable Output power & transmission distance: 0.5km@25m W, 1km to 200m W, 2km to 600m W Transmission power: 0m W / 25m W / 200m W / 600m W Full video format: NTSC / PALInput voltage & power dissipation: 7V ~ 24V, + 12V / 260m A @ 600m W
Size: 36*36*6mm Weight:7g (excluding antenna) With output power self-check function. Nixie tube SCAN: frequency point (1-8), frequency band (AE), power (1-3, 0=0mw, 1=25mw, 2=200mw, 3=600mw) Package included:1 x 5.8G 40CH 0m W/25mw/200mw/600mw VTX Switchable
...

Eachine Wizard X220HV FPV Racing RC Drone Spare Part Antenna Fixed Mount 3D Printing Description: Brand name: Eachine Item name: antenna fixed mount Quantity: 1 PCUsage: for wizard x 220hv FPV racing RC drone Package included:1 x antenna fixed mount ...

Eachine Wizard X220HV FPV Racing RC Drone Spare Part Customized F4 Flight Controller Built-in OSDDescription: Brand name: Eachine Item name: Customized F4 Flight Controller Main control chip: STM32F405 Sensor: MPU6000 6 axes Power supply: 5 V Integrated OSDLC filter on board Supports Beta Flight / inva running firmware Package included:1 x Customized F4 Flight Controller ...

Eachine Wizard X220HV FPV Racing RC Drone Spare Part Speedy Bee bluetooth Module Description: Brand name: Eachine Item name: Speedy Bee bluetooth Module Support Betaflight configurator Speedybee App: i OS 10.0+; iPad 3; Androd 4.3+ Output power: 0d BMSensitivity: -94d BMExternal interface: BROADCAST SWITCH, TX, RX, 3-5V DC Input, GNDTransmission speed: Bidirectional 1K/ Sbluetooth protocol: bluetooth

Specification V4.0 BLETransmission distance: 30 meters Frequency range: 2400 M Hz-2483.5 M Hz (2.4G ISM Band) Baud rate: 2400, 4800, 9600, 14400, 19200 (default), 28800, 38400, 57600, 76800, 115200, 230400 Working voltage: 3.3V-5.0 V Working current: 8.3m A-10m A Weight: 1.4g
Size: 27*15*4.5mm Package included:1 x Speedy Bee bluetooth module


...

Eachine Wizard X220HV FPV Racing RC Drone Spare Part Standoffs M3*28 M3*20 Description: Brand name: Eachine Item name: standoffs Camera fixing standoffs: M3*28 Frame standoffs: M3*20 Usage: for wizard x 220hv FPV racing RC drone Package included:1 x M3*28 standoffs 8 x M3*20 standoffs ...

Eachine Wizard X220S 220mm FPV Racing X Frame 4.0mm Frame Arms Carbon Fiber The first 100 items of Eachine Wizard X220S frame kit come without PDB boards, after the first 100 items it will come with a PDB. Description: Brand: Eachine Item name: wizard X220S FPV racing frame
Material: carbon fiber Wheel base: 220mm Frame arm: 4mm thickness, 15mm width Thickness of upper plate: 1.5mm Thickness of lower plate: 2.0mm Weight: 131g Configuration: regular XPackage included:1 x Eachine wizard X220S FPV racing frame
...

Eachine Wizard X220S FPV Racer Customized Version Omnibus F4 V3-S Betaflight 3.0.1 Flight Controller Description: Brand: Eachine Item name: omnibus F4 flight controller
Size: 36x 36mm Mount holes: 30.5x 30.5mm STM32 F405 MCU, Runs Betaflight 3.0.1 firmware, could run faster loop time. Using F4 MCU controls OSD over SPI bus in DMA mode.OSD Configation has been included in Betaflight GUI.SBUS/PPM input (Pinheaders)6PWM output (1-4 Pinheaders & Sh 1.0 Plug, 5-6 as Pinheaders) With BAROSPI Sensor MPU6000 Included 128 Mbit Flash, please always use BEC for the FC. Supported by BETAFLIGHT & d Ronin Package included:1 x omnibus F4 flight controller
...

Eachine Wizard X220S FPV Racer Spare Part 1179 800TVL CCD Camera 2.8mm Lens PALDescription: Brand: Eachine Item name: 1179 800TVL CCD Camera
Colour: violet Sensor: CCDResolution (horizontal center): 800TVLShell

Size: 25mm*25mm Weight: 11g Resolution: PAL: 1980H1080 (2MP) Format: PALVideo output: 1.0 Vp-p/75 Automatic gain control: 0.25/0.50/0.75/1.00 adjustable, up to 55d B.AWB: ON/OFFExposure mode: electron exposure Electronic shutter: 1/50 (1/60)
- 1/100000 SGamma correction: 0.45/1.0 Synchronization method: internal synchronization Lens: standard 2.8mm lens Working voltage: DC12V (Wide Voltage, measured that can be work in 5-13V) Workig current: 70m A (low power consumption) Workig temperature: -20℃--60℃ Humidity: 0%~98% Strong backlighting effect Package included:1 x 1179 800TVL CCD Camera



...

Eachine Wizard X220S FPV Racer Spare Part 5V12V PDBDescription: Brand: Eachine Item name: 5V12V PDBQuantity: 1 pc Usage: for Eachine wizard X220S racing drone Package included:1 x 5V12V PDB ...

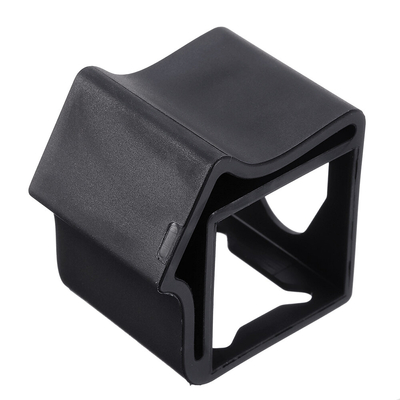

Eachine Wizard X220S Omnibus F4 5.8G 40CH VTX 30A BLheli_S Dshot 600 ESC 800TVL Camera With 30 Runcam 3/ Gopro Session Camera Mount Dear customers, Attention please. The flexible glue anti-vibration motor pad may cause the motor to slip, please check & tighten the screws before flying. Best regards, Banggood Description: Item Specification Eachine Wizard X220 S Wheelbase: 220mm Frame arm: 4mmcarbon fiber Weigh:356g (withoutbattery & camera mount) Takeoffweigh:561g 3K carbon fiber frame kit, 4mm thickness & 15mm width frame arms, the width is 10mm less than Eachine Wizard X220. Frame kit with camera angle scale & 30 camera mount for Runcam 3 Gopro session. Anti-vibration sponges to protect the racer frome crashing. Eachine MN2206 2300KV motor KV: 2300 Max thrust:1100 G Length:35MMNO.OF cell:3-5 S Diameter:28MMFramework:12N14 P Shaft:5mm Propeller:5 inch Weight:28g Eachine 30A BLHELI_S 4 in 1ESCCon. current:30 A Peak current (10S):35 A Input voltage:2-5SBEC:5V output Programming:YESFirmware:blheli_s Weight:28g
Size: 36*36MMEachine 1179 800TVL CCD camera
Colour: violet Sensor: CCDResolution (horizontal center): 800TVLShell

Size: 25mm*25mm Weight: 11g Resolution: PAL: 1980H1080 (2MP) Format: PALVideo output: 1.0 Vp-p/75 Automatic gain control: 0.25/0.50/0.75/1.00 adjustable, up to 55d B.AWB: ON/OFFExposure mode: electron exposure Electronic shutter: 1/50 (1/60)
- 1/100000 SGamma correction: 0.45/1.0 Synchronization method: internal synchronization Lens: standard 2.8mm lens Working voltage: DC12V (Wide Voltage, measured that can




...
