Original Airbot MH2208 2208 1800KV 5-6S / 2700KV 4-5S Brushless Motor for RC Drone FPV Racing Specification: Brand name: Airbot Item name:MH2208 Brushless Motor KV: 1800/2700 Configu-ration: 12N14 P Stator Diatmeter: 22mm Stator Length: 8mm Shaft Diameter: 4mm (Hollow) Motor Dimension (Dia. Len): 29.2x 32.15mm Weight: 36.5g (3cm Wire) Idle current (10)@10V (A): 1.1 (1800KV) 2.1 (2700KV) No.of Cells (Lipo): 5~6S (1800KV) 4~5S (2700KV) Max Continous Power (W)180S: 1000 (1800KV) Max Continous Power (W)15S: 1000 (2700KV) Internal Resistance: 60m (1800KV) Internal Resistance: 38m (2700KV) Max Current (30S): 40A (1800KV) Max Current (15S): 45 A Max. Efficiency Current: (3-6A)85% Package Included:1 x MH2208 Brushless Motor ...

Original Airbot Micro OSD V2.4 Upgrade OSD Module with AB7456 Chip LDO Protection for RC Drone Introducation: Air Bot Micro OSD is an enhanced Minim OSD in a smaller package, but with full FTDI & video pin headers. Using the lessons learned from building the FLIP32 AIO, Air Bot has created a Minim OSD that is resilient against voltage spikesso you dont have to worry about your OSD going black anymore. Not only that but it consumes less power than a traditional Minim OSD & has twice as much character memory. This is all possible thanks to a hardware design that

Includes:: two low drop out voltage regulators & instead of a MAX7456 OSD chip an enhanced version called AB7456. The AB7456 chip uses less power, is tolerant of wider voltage swings & twice as much nvram than the commonly used MAX7456 chip. The Micro OSD The MWOSD firmware or the updated Scarab-OSD firmware can both be used with this hardware. The pre-loaded firmware only works for MWC / CF / BF / RF, but you can reflash it as MINIMOSD, then will works with PIXhawk/APMSpecification: Brand Name: Airbot Model: Micro OSD V2.4 Item Name: Micro OSD Module for RC Drone Application: Support MWC/ Cleanflight/ Betaflight & Raceflight

Features:- ATmega 328P withbootloader- AB7456 instead of MAX7456 monochrome on-screen display, much lower power consumption- FTDI cable compatible pinout- LDO protected power supply, 5V LDO for MCU, 3.3V LDO for OSD Chip, both LDO are upto 40v tolerate (Operating Conditions is 4.5-6.5V)- With LC filter function (d



...

Original Airbot MPU6000 Gyro BOX for OMNIBUS F4 Pro Corner Flight Controller Specification: Brand name: Airbot Item name: MPU6000 Gyro BOXSuitable for OMNIBUS F4 Pro Corner Flight Controller Package Included:1 x MPU6000 Gyro BOX ...

Original Airbot Mr. Copper 2306 2700KV 3-5S FPV Racing Brushless Motor Specification: Brand name: Airbot Item name:2306 2700KV Brushless Motor KV: 2700 Configu-ration: 12N14 P Stator Diameter: 23mm Stator Length: 6mm Shaft Diameter: 4mm (Hollow) Motor Dimension (Dia. Len): 28.49*32mm Weight: 36g (contains 15cm wire) Idle current (10)@10V (A): 2.6 No.of Cells (Lipo): 3-5 S Max Continous Power (W)30S: 950 Internal Resistance: 26m Max Current (30S): 45 A Max. Effciency Current: (4-8A)81% Package Included:1 x 2306 2700KV Brushless Motor ...

Original Airbot Omnibus AIO F4 V6 Flight Controller STM32 F405 5x UARTs 30.5x 30.5mm for RC Drone OMNIBUS F4s upgrade version, using F405 & new target, with 5x UARTsnow.classic OMNIBUS design, using F4 MCU controls OSD over SPI bus, compare the first version, we added BMP280 as barometer & SD Card supports.OSD Configuration has been incl. in Betaflight GUI.FCincl. 5V1A BEC on board (3-6s) & 1x 8V BEC for Camera MPU6000 at SPI bus, Ext, SPI for damped gyro Use fireworks v 2 firmware, in CLI, setgyro_to_use=SECONDNew version with 8PIN Sh 1.0 Socket, could be much easier connect to our 4in 1 ESC by one cable. On v 5, we added jumpers for Current source select, pleaseread the manual & set the jumperbefore using the FC. Specificaiton:STM32 F405 MCU, Runs Betaflight 3.0 firmware SBUS/PPM input (Pinheaders)6PWM output (1-4 Pinheaders & Sh 1.0 Plug, 5-6 as Pinheaders) Only 36x 36mm, mount holes 30.5x 30.5mm INCL. BARO BMP280SPI Sensor MPU6000 Flash Note: This does not include any cables or connectors. Please order separately. Package Included:1 x Flight Controller ...

Original Airbot Omnibus F3 V2 Flight Controller SD BEC OSD 2-6S 30.5x 30.5mm Note: Itdoesntincludeanycablesorconnector. Pleaseorderseparately. Specification:STM32 F303 MCU, Runs Betaflight 3.0 firmware SBUS/PPM input (Pinheaders)8PWM output (1-4 Pinheaders & Sh 1.0 Plug, 5-6 as Pinheaders) Only 36x 36mm, mount holes 30.5x 30.5mmoptional Barometer BMP280SPI Sensor MPU6000SD Card solt 2-6S Lipo Direct power (SBEC, not LDO)8pin 4in 1 ESC Port (Current, VBAT & PWM1234) Manual Download Feature:A new generation AIOFlight control for FPV, based on F303 MCU, using F3 MCU controls OSD over SPI bus in DMA mode, OSD Configation has been incl. in Betaflight GUI. Supports SD Card & LIPO direct input (2-4S), New design with SBECMPU6000 at SPI bus. Package included:1 x Flight Controller ...

Original Airbot Omnibus F4 Nano Flight Controller with LC Filter Ori 32 4 In 1 25A Brushless ESCNote: It doesnt include any cables or connector. Please order separately. Specification: Omnibus F4 Nano Flight Controller Brand name: Airbot 2-6s direct input (adaptor to connect to Wave 4in 1 ESC providing power & ESC signal connection (note Wave is 2-4s))MPU6000 gyro connected by SPI for low noise, clean, high frequency gyro samples BMP280 Barrometer to enable altitude hold Betaflight OSDOnboard voltage sensor On board 5v regulator, components rated to 2A
- recomended 1A max to prevent heat build up) Built in L-C filter to provide clean power to FPV kit STM32 F405 MCU running betaflight 3.2 Pin headers for SBUS/PPM input Output for 4 motors on JST-SH 1.0 8pin plug connects to Airbot Wave 4in 1 ESC (The Option 8pin 4in 1 Cable)25x 25mm (20x 20mm M3 mount holes) Ori 32 4 In 1 25A Brushless ESC32bit ESC with BLHELI32 firmware Supports 2-4S lipo input 4PWM input Voltage output (VBAT)NO BECSupports oneshot / Multishot / Dshot PWMMount holes 20x 20mm Supports damped light Package Included:1 x Omnibus F4 Nano Flight Controller 1 x Ori 32 4 In 1 25A Brushless ESC
...

Original Airbot Omnibus F4 Nano V6 Flight Controller OSD 5V 2A BEC LC Filter 2-6S 20x 20mm Note: Itdoesntincludeanycablesorconnector. Pleaseorderseparately. Airbots new V5 brushless AIO flight controller for FPV may be small but is packed with features. With Support ending for F1 processors, F3 become the bottom wrung, but dont worry, this little board features an F4 MCU. Its Betaflight OSD is connected over SPI in DMA, dont know what that means? It is designed on the current proposed architecture for betaflight, it will show you any & all data you want on your FPV feed & you can change settings including tune your PIDs without taking your goggles off! The board also features an MPU6000 gyro connected over SPI for fast, accurate, low noise gyro data & can support 2-6s direct input. Notice: If you plan to use the FC with our 4in 1 ESC (Wave or Ori 4in 1), you only need one 8pin Cable (The Option 8pin 4in 1 Cable) Specification:- 2-6s direct input (adaptor to connect to Wave 4in 1 ESC providing power & ESC signal connection (note Wave is 2-4s))- MPU6000 gyro connected by SPI for low noise, clean, high frequency gyro samples- BMP280 Barrometer to enable altitude hold- Betaflight OSD- Onboard voltage sensor- On board 5v regulator, components rated to 2A
- recomended 1A max to prevent heat build up)- Built in L-C filter to provide clean power to FPV kit- STM32 F405 MCU running betaflight 3.2- Pin headers for SBUS/PPM input- output for 4 motors on JST-SH 1.0 8pin plug connects to Airbot Wav
...

Original Airbot OMNIBUS F4 NANO V7 Flight Controller OSD 6 Uart 2-6S 5V/2A BEC 20x 20mm for RC Drone FPV Racing The Omnibus F4 Nano V7 flight controller uses the ICM20602 over SPI for the stable flight performance. Also onboard is AB7456 OSD chip for the Beta Flight integrated OSD. Omnibus F4 Nano V7 using new target, supports 3-6s LIPO direct input, has 6x Hardware UARTs + 1x I2 C Specification: Brand name: Airbot Item name:OMNIBUS F4 NANO V7 Flight Controller Tantalum Capacitors added for noiseless gyro reading Solder pads added for Smart Audio & Camera Control (next to Video pads)FPC port for Frsky RXThis board now has 6 UART ports PWM pads on the corner 5V BEC, 2A output Feature:STM32 F405 MCU, Runs Betaflight firmware ICM Gyro Over SPI Bus 20 x 20 mm Mounting Holes Supports Lipo direct plugin (3-6S) Supports 5V 1A BEC output (Buck)STM32 controls OSD chip over SPI in DMA mode (Betaflight OSD) More UARTs 25x 25mm (20x 20mm M3 mount holes) Package Included: (Wires are not included)1 x OMNIBUS F4 NANO V7 Flight Controller ...

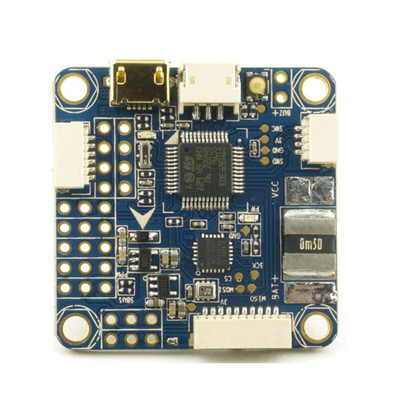

Original Airbot Omnibus F4 Pro V3 Flight controller SD 5V 3A BEC OSD Current Sensor LC Filter Specification: Brand name: Airbot Item name: Omnibus F4 Pro V3 Flight controller SPI Gyro MPU6000 On-Board OSD (controllered by Betaflight, FC over SPI bus) Micro SD Blackbox Baro (BMP280)F4 Processor (F405)5v 3a SBECBuilt-in Current Sensor On-Board Video Filter (only can supply 5V to VTX & Camera) Package Included:1 x Omnibus F4 Pro V3 Flight controller ...
