Original Airbot Omnibus F3 Pro V2 Flight Controller SD 5V 3A BEC OSD Current Sensor 30.5x 30.5mm Note: Itdoesntincludeanycablesorconnector. Pleaseorderseparately.A new generation AIOFlight control for FPV, based on F303 MCU, using F3 MCU controls OSD over SPI bus in DMA mode, OSD Configation has been incl. in Betaflight GUI. Supports SD Card & LIPO direct input (2-4S)MPU6000 at SPI bus. Pro Version using SBEC which makes less heat than LDO version (The Normal version) Pro Version has build in Current Sensor & Power Filter too. Specification:STM32 F303 MCU, Runs Betaflight 3.0 firmware SBUS/PPM input (Pinheaders)8PWM output (1-4 Pinheaders & Sh 1.0 Plug, 5-6 as Pinheaders) Only 36x 36mm, mount holes 30.5x 30.5mm SPI Sensor MPU6000SD Card solt 2-6S Lipo Direct power 5V3A SBECBuild in Current sensor TDK power filter for VTX & Camera Package included:1 x Omnibus F3 Pro V2 Flight Controller ...

Original Airbot Omnibus F3 V2 Flight Controller SD BEC OSD 2-6S 30.5x 30.5mm Note: Itdoesntincludeanycablesorconnector. Pleaseorderseparately. Specification:STM32 F303 MCU, Runs Betaflight 3.0 firmware SBUS/PPM input (Pinheaders)8PWM output (1-4 Pinheaders & Sh 1.0 Plug, 5-6 as Pinheaders) Only 36x 36mm, mount holes 30.5x 30.5mmoptional Barometer BMP280SPI Sensor MPU6000SD Card solt 2-6S Lipo Direct power (SBEC, not LDO)8pin 4in 1 ESC Port (Current, VBAT & PWM1234) Manual Download Feature:A new generation AIOFlight control for FPV, based on F303 MCU, using F3 MCU controls OSD over SPI bus in DMA mode, OSD Configation has been incl. in Betaflight GUI. Supports SD Card & LIPO direct input (2-4S), New design with SBECMPU6000 at SPI bus. Package included:1 x Flight Controller ...

Original Airbot Omnibus F4 Nano Flight Controller with LC Filter Ori 32 4 In 1 25A Brushless ESCNote: It doesnt include any cables or connector. Please order separately. Specification: Omnibus F4 Nano Flight Controller Brand name: Airbot 2-6s direct input (adaptor to connect to Wave 4in 1 ESC providing power & ESC signal connection (note Wave is 2-4s))MPU6000 gyro connected by SPI for low noise, clean, high frequency gyro samples BMP280 Barrometer to enable altitude hold Betaflight OSDOnboard voltage sensor On board 5v regulator, components rated to 2A
- recomended 1A max to prevent heat build up) Built in L-C filter to provide clean power to FPV kit STM32 F405 MCU running betaflight 3.2 Pin headers for SBUS/PPM input Output for 4 motors on JST-SH 1.0 8pin plug connects to Airbot Wave 4in 1 ESC (The Option 8pin 4in 1 Cable)25x 25mm (20x 20mm M3 mount holes) Ori 32 4 In 1 25A Brushless ESC32bit ESC with BLHELI32 firmware Supports 2-4S lipo input 4PWM input Voltage output (VBAT)NO BECSupports oneshot / Multishot / Dshot PWMMount holes 20x 20mm Supports damped light Package Included:1 x Omnibus F4 Nano Flight Controller 1 x Ori 32 4 In 1 25A Brushless ESC
...

Original Airbot Omnibus F4 Nano V6 Flight Controller OSD 5V 2A BEC LC Filter 2-6S 20x 20mm Note: Itdoesntincludeanycablesorconnector. Pleaseorderseparately. Airbots new V5 brushless AIO flight controller for FPV may be small but is packed with features. With Support ending for F1 processors, F3 become the bottom wrung, but dont worry, this little board features an F4 MCU. Its Betaflight OSD is connected over SPI in DMA, dont know what that means? It is designed on the current proposed architecture for betaflight, it will show you any & all data you want on your FPV feed & you can change settings including tune your PIDs without taking your goggles off! The board also features an MPU6000 gyro connected over SPI for fast, accurate, low noise gyro data & can support 2-6s direct input. Notice: If you plan to use the FC with our 4in 1 ESC (Wave or Ori 4in 1), you only need one 8pin Cable (The Option 8pin 4in 1 Cable) Specification:- 2-6s direct input (adaptor to connect to Wave 4in 1 ESC providing power & ESC signal connection (note Wave is 2-4s))- MPU6000 gyro connected by SPI for low noise, clean, high frequency gyro samples- BMP280 Barrometer to enable altitude hold- Betaflight OSD- Onboard voltage sensor- On board 5v regulator, components rated to 2A
- recomended 1A max to prevent heat build up)- Built in L-C filter to provide clean power to FPV kit- STM32 F405 MCU running betaflight 3.2- Pin headers for SBUS/PPM input- output for 4 motors on JST-SH 1.0 8pin plug connects to Airbot Wav
...

Original Airbot OMNIBUS F4 NANO V7 Flight Controller OSD 6 Uart 2-6S 5V/2A BEC 20x 20mm for RC Drone FPV Racing The Omnibus F4 Nano V7 flight controller uses the ICM20602 over SPI for the stable flight performance. Also onboard is AB7456 OSD chip for the Beta Flight integrated OSD. Omnibus F4 Nano V7 using new target, supports 3-6s LIPO direct input, has 6x Hardware UARTs + 1x I2 C Specification: Brand name: Airbot Item name:OMNIBUS F4 NANO V7 Flight Controller Tantalum Capacitors added for noiseless gyro reading Solder pads added for Smart Audio & Camera Control (next to Video pads)FPC port for Frsky RXThis board now has 6 UART ports PWM pads on the corner 5V BEC, 2A output Feature:STM32 F405 MCU, Runs Betaflight firmware ICM Gyro Over SPI Bus 20 x 20 mm Mounting Holes Supports Lipo direct plugin (3-6S) Supports 5V 1A BEC output (Buck)STM32 controls OSD chip over SPI in DMA mode (Betaflight OSD) More UARTs 25x 25mm (20x 20mm M3 mount holes) Package Included: (Wires are not included)1 x OMNIBUS F4 NANO V7 Flight Controller ...

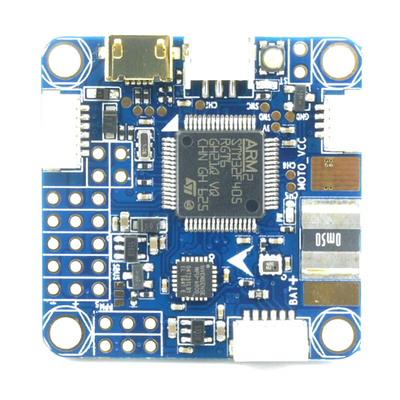

Original Airbot Omnibus F4 V5 Flight Controller OSD STM32 F405 MCU MPU6000 5V 1A BECSpecification: Brand name: Airbot Item name: Omnibus F4 V5 Flight Controller BEC: 5V1A BEC 3-6SSTM32 F405 MCU, Runs Betaflight 3.0 firmware SBUS/PPM input (Pinheaders)6PWM output (1-4 Pinheaders & Sh 1.0 Plug, 5-6 as Pinheaders) Only 36x 36mm, mount holes 30.5x 30.5mm INCL. BARO BMP280SPI Sensor MPU6000SDCard slot Feature:8PIN Sh 1.0 Socket, could be much easier connect to 4in 1 ESC by one cable. Added jumpers for Current source select, pleaseread the manual & set the jumperbefore using the FCPackage Included:1 x Omnibus F4 V5 Flight Controller ...

Original Airbot OMNIBUS F4 V6 Flight Controller Typhoon 32 V2.1 35A Blheli_32 3-6S Brushless ESCSpecification: Flight Controller OMNIBUS F4s upgrade version, using F405 & new target, with 5x UARTsnow.classic OMNIBUS design, using F4 MCU controls OSD over SPI bus, compare the first version, we added BMP280 as barometer & SD Card supports.OSD Configuration has been incl. in Betaflight GUI.FCincl. 5V1A BEC on board (3-6s) & 1x 8V BEC for Camera MPU6000 at SPI bus, Ext, SPI for damped gyro Use fireworks v 2 firmware, in CLI, setgyro_to_use=SECONDNew version with 8PIN Sh 1.0 Socket, could be much easier connect to our 4in 1 ESC by one cable. On v 5, we added jumpers for Current source select, pleaseread the manual & set the jumperbefore using the FC.STM32 F405 MCU, Runs Betaflight 3.0 firmware SBUS/PPM input (Pinheaders)6PWM output (1-4 Pinheaders & Sh 1.0 Plug, 5-6 as Pinheaders) Only 36x 36mm, mount holes 30.5x 30.5mm INCL. BARO BMP280SPI Sensor MPU6000 Flash Brushless ESC32bit ESC with BLHELI32 firmware Supports 3-6S lipo input 4PWM input Voltage output (VBAT) Supports Oneshot / Multishot / Dshot PWMMounting holes 30.5x 30.5mm Supports damped light NO BECSupports DSHOT1200, BLHELI32 firmware. Added more CAPS to reduce power noise. Package Included:1 x Flight Cotnroller 1 x Brushless ESC1 x 3CM 8pin cable 1 x 4CM FPC cable ...

Original Airbot OMNIBUS F4 V6 Flight Controller Furling 32 35A 3-6S Blheli_32 Brushless with PDB for RC Drone FPV Racing Specification: Brand name: Airbot Item name:OMNIBUS F4 V6 Flight Controller Furling 32 35A ESCPDB Board Flight Controller User Manual, Download OMNIBUS F4s upgrade version, using F405 & new target, with 5x UARTsnow.classic OMNIBUS design, using F4 MCU controls OSD over SPI bus, compare the first version, we added BMP280 as barometer & SD Card supports.OSD Configuration has been incl. in Betaflight GUI.FCincl. 5V1A BEC on board (3-6s) & 1x 8V BEC for Camera MPU6000 at SPI bus, Ext, SPI for damped gyro Use fir eworks v 2 firmware, in CLI, setgyro_to_use=SECONDNew version with 8PIN Sh 1.0 Socket, could be much easier connect to our 4in 1 ESC by one cable. On v 5, we added jumpers for Current source select, pleaseread the manual & set the jumperbefore using the FC. Feature:STM32 F405 MCU, Runs Betaflight 3.0 firmware SBUS/PPM input (Pinheaders)6PWM output (1-4 Pinheaders & Sh 1.0 Plug, 5-6 as Pinheaders) Only 36x 36mm, mount holes 30.5x 30.5mm INCL. BARO BMP280SPI Sensor MPU6000 Flash Furling 32
- 32bit BLHELI ESCBLHeli_32 is the third generation BLHeli code, following base BLHeli & BLHeli_S.BLHeli_32 runs on an ARM 32bit MCU, initially it will be on a Cortex-M0 running at 48 M Hz, but there are MCUs out there that can run a lot faster. So what can the increased MCU speed do? First of all, it can run input signals with lower latency at faster rates. Dshot up to at least Dshot 1200,
...

Original Airbot OMNIBUS F4 V6 Flight Controller Furling 32 mini 45A Blheli_32 Brushless ESC with PDB for RC Drone FPV Racing Specification: Brand name: Airbot Item name:OMNIBUS F4 V6 Flight Controller Furling 32 mini 45A Blheli_32 Brushless ESCPDBFlight controller: User Manual, Download OMNIBUS F4s upgrade version, using F405 & new target, with 5x UARTsnow.classic OMNIBUS design, using F4 MCU controls OSD over SPI bus, compare the first version, we added BMP280 as barometer & SD Card supports.OSD Configuration has been incl. in Betaflight GUI.FCincl. 5V1A BEC on board (3-6s) & 1x 8V BEC for Camera MPU6000 at SPI bus, Ext, SPI for damped gyro Use fir eworks v 2 firmware, in CLI, setgyro_to_use=SECONDNew version with 8PIN Sh 1.0 Socket, could be much easier connect to our 4in 1 ESC by one cable. On v 5, we added jumpers for Current source select, pleaseread the manual & set the jumperbefore using the FC. Feature:STM32 F405 MCU, Runs Betaflight 3.0 firmware SBUS/PPM input (Pinheaders)6PWM output (1-4 Pinheaders & Sh 1.0 Plug, 5-6 as Pinheaders) Only 36x 36mm, mount holes 30.5x 30.5mm INCL. BARO BMP280SPI Sensor MPU6000 Flash Furling 32 mini 45A Blheli_32 Brushless ESCNew BLHELI32 ESC with F3 MCU, give more smooth control & faster responding speed. New technology Mosfet, supports up to 50A burst & 45A continued. (ESC mounted under props, without anything covered on the ESC) Feature:F3 (M4 Core) MCU, Runs BLHELI32 firmware, the MCU works at 108 Mhz Mosfet tested at 4S 55A, under props, nothing cover ...

Original Airbot OMNINXT F7 Flight Controller Typhoon 32 V2.1 35A Blheli_32 3-6S Brushless ESCSpecification: Flight Controller The Omni NXT F7 is Airbots top of the range flight controller based on the newly designed NXT architecture. It uses the trusty MPU6000 Gyro with an additional ICM20608 on top. With the onboard damping box, the gyros run perfectly under 32k looptime. If you havent already seen it, you should check out Joshs awesome video on different IMUs. The NXT also comes with 2 different BECs & 6 UARTs. Omni NXT F7 supports 3-6s LIPO direct input, built-in BEC for camera & power Filter. This FC is designed to be able to pair with one of Airbots 4in 1 ESCs to form a powerful combo, & also has pins for individual ESCs too.-F7 MCU processors-Two gyros onboard: MPU6000 for sampling up to 8khz & ICM20608 for sampling up to 32khz-30.5x 30.5mm Mounting holes-Supports 3-6S Lipo-Built-in 5V 1A BEC output (Buck)-Built-in 8V 1A BEC with LC filter output for the camera & VTX (Buck)-STM32 controls OSD chip over SPI in DMA mode (Betaflight OSD)-Built-in hall Current Sensor ( No current sensor)-More caps to reduce power noise-Port for easy connection to Airbot 4-in-1 esc (SH1.0 8P)- Solder pads added for Smart Audio & Camera Control Brushless ESC-32bit ESC with BLHELI32 firmware-Supports 3-6S lipo input-4PWM input-Voltage output (VBAT)-Supports Oneshot / Multishot / Dshot PWM-Mounting holes 30.5x 30.5mm-Supports damped light-NO BEC- Supports DSHOT1200, BLHELI32 firmware Package Incl ...
