£70.42
Original Airbot Omni NXT F7 Flight Controller OSD 5V/8V BEC MPU6000 Gyro ICM20608 32khz 3-6 S The Omni NXT F7 is Airbots top of the range flight controller based on the newly designed NXT architecture. It uses the trusty MPU6000 Gyro with an additional ICM20608 on top. With the onboard damping box, the gyros run perfectly under 32k looptime. If you havent already seen it, you should check out Joshs awesome video on different IMUs. The NXT also comes with 2 different BECs & 6 UARTs. Omni NXT F7 supports 3-6s LIPO direct input, built-in BEC for camera & power Filter. Specification: Brand name: Airbot Item name: Omni NXT F7 Flight Controller F7 MCU processors Two gyros onboard: MPU6000 for sampling up to 8khz & ICM20608 for sampling up to 32khz 30.5x 30.5mm Mounting holes Supports 3-6S Lipo Built-in 5V 1A BEC output (Buck) Built-in 8V 1A BEC with LC filter output for the camera & VTX (Buck)STM32 controls OSD chip over SPI in DMA mode (Betaflight OSD) Current sensor: NOMore caps to reduce power noise Port for easy connection to Airbot 4-in-1 esc (SH1.0 8P) Solder pads added for Smart Audio & Camera Control Package Included:1 x Omni NXT F7 Flight Controller ...
Available
£38.75
Original Airbot Ori 4 In 1 BB21 25A 2-4S Blheli_S DSHOT600 FPV Racing Brushless ESC 20x 20mm Note: Itdoesntincludeanycablesorconnector. Pleaseorderseparately. Specification: Brand name: Airbot Item name: Ori 4 In 1 BB21 25 A Brushless ESCBB21 MCU, 48 Mhz Runs BLHELI_S J_H_xx firmware Supports 2-4S lipo input 4PWM input Voltage output (VBAT)NO BECSupports oneshot / Multishot / Dshot PWMMount holes 20x 20mm Supports damped light External capacitorsneeded Package included:1 x Ori 4 In 1 BB21 25 A Brushless ESC ...
Available
£52.42
Original Airbot Ori 32 4 In 1 Blheli_32 25A 2-4S DSHOT1200 FPV Racing Brushless ESC 20x 20mm Note: Itdoesntincludeanycablesorconnector. Pleaseorderseparately. Specification: Brand name: Airbot Item name: Ori 32 4 In 1 Blheli_32 25A ESC32bit ESC with BLHELI32 firmware Supports 2-4S lipo input 4PWM input Voltage output (VBAT)NO BECSupports oneshot / Multishot / Dshot PWMMount holes 20x 20mm Supports damped light Package included:1 x Ori 32 4 In 1 Blheli_32 25A ESC ...
Available
£4.55
Original Airbot Power Module V2 BECLC Filiter for OMNIBUS F3 F4 Flight Controller Specification: Brand name: Airbot Item name: Power Module Suitable for OMNIBUS F3 F4 Flight Controller Packge Included:1 x Power Module ...
Available
£68.37
Original Airbot Typhoon 32 V2 4 In 1 35A Blheli_32 3-6S DSHOT1200 FPV Racing Brushless ESC Telemetry Ready 30.5x 30.5mm Note: Itdoesntincludeanycablesorconnector. Pleaseorderseparately. Specificaiton: Brand name: Airbot Item name: Typhoon 32 V2 4 In 1 35A ESC32bit ESC with BLHELI32 firmware Supports 3-6S lipo input 4PWM input Voltage output (VBAT) Supports Oneshot / Multishot / Dshot PWMMounting holes 30.5x 30.5mm Supports damped light NO BECTo download the installation package of BLHELI_32 Android APP please Click Here. Package
Includes::1 x 4in 1 ESC board NOTE: This does not include any cables or connectors. Please order separately.
...
Available
£27.92
Original Airbot Wild Willys Special Juice 2306 2700KV Brushless Motor for RC FPV Racing Drone Specification: Brand name: Airbot Item name: Wild Willys Special Juice Motor KV: 2700KVStator Diamter: 23mm Stator Length: 3mm Max Current: 55A (30S) Weight: 29g

Features:
-Long motor wires for perfect installation with a Flight One Bolt 4in 1 or Bolt 32 ESC-Low profile pantsless stator to shave precious grams & add robustness in hard hits-Solid core steel shaft that runs throughout the motor to prevent any warping of the bell in hard hits-Square bolt hole mounting pattern to shave weight & add simplicity to the build-Low profile prop nuts-The sickest pink color scheme ever seen by man Package Included:1 x Wild Willys Special Juice Motor

...
Available
£39.89
Original Airbot Wraith 32 Metal V2 BLheli_32 ESC 65A 2-6S Build-in Current Sensor LED for RC Drone Specification: Brand name: Airbot Item name: Wraith 32 Metal V2 ESCFirmware: BLHeli_32 Con. current: 65 A Battery: 2-6S
Size: 20x 30 mm Protocol: Dshot/ Multishot/ Oneshot/PWM/ Proshot To install the software of BLHeli_32 Android APP please Click Here.

Features:
-65A continuous current support with bursts up to 80A-Supports up to 6S lipo-The metal MOS has a better heat dissipation & gives more power.-More capacitors, including a 2200uf one.-Better power supply lines-Better stability.-Better transmission interface layout. What is new with V2 The new version 2 is a tweaked design that makes the Wraith 32 metal even more extreme. This version include an extra 2200uf capacitor to further filter any noise. It also now uses a digital current sensor. Why use a digital current sensor you may ask? Well the digital sensor is more precise & elmiates drift. It also means that you dont need to use a 0.5 ohm resistor in the circuit that reduces any power losses, giving this ESC more power overall to send to your motors! Package Included:1 x Wraith 32 Metal V2 ESC


...
Available
£17.08
Original Airbot Wraith 32 V1.1 35A BLheli_32 32bit 2-6S DShot 1200 ESC w/ RGB LEDCurrent Sensor Specification: Brand Name: Airbot Model: Wraith 32 V1.1 Item Name:35A BLheli_32 32bit Brushless ESC for RC Drone Input Voltage: 2-6S Lipo Con. Current:35 A Firmware: BLheli_32- On-board RGB LED (No mixed color, only R or G or B )- Built-in Current Sensor- With Telemetry Pad-Dshot 1200 up to 32k Hz
Size: 15x 30mm

Features:
-BLHeli_32 Firmware, runs on an ARM 32bit MCU- DShot 1200 Support up to 32k Hz- Bright RGB LED- Voltage & Current Limiting- Auto Timing Feature- Smoother Response- Extended DShot Functionality to come Package Included:1x Airbot Wraith 32 V1.1 35A ESC


...
Available
£17.29
Original Airbot Wraith 32 V2 35A BL_32 DShot 1200 2-6S ESC w/ RGB LED Current Sensor 1800uf Cap Specification: Brand Name: Airbot Model: Wraith 32 V2 Item Name:35A BLheli_32 32bit Brushless ESC for RC Drone Input Voltage: 2-6S Lipo Con. Current:35 A Firmware: BLheli_32- On-board RGB LED (No mixed color, only R or G or B )- Built-in Current Sensor- With Telemetry Pad 1800uf Cap-Dshot 1200 up to 32k Hz
Size: 15x 30mm Weight: 6g
Features:BLHeli_32 is the 3rd generation of BLHeli firmware, runs on an ARM 32bit MCU, initially it will be on a Cortex-M0 running at 48 M Hz, but there are MCUs out there that can run a lot faster. Wraith 32 is a smaller 6S version that also supports voltage limiting & current limiting as well as a bright RGB LED. So what can the increased MCU speed do? First of all, it can run input signals with lower latency at faster rates. Dshot up to at least Dshot 1200, & at rates up to at least 32k Hz is now supported. Secondly it allows packing of more functionality.- Like programmable pwm frequency, up to 48k Hz, that can run motors even smoother, & also allows for moving of small but potentially disturbing humps in the throttle response. All ESCs have these bumps, with BLHeli_32 they can now be moved in the rpm range, to a place where the system has low sensitivity to them.- Like auto timing. Which is not the option to choose if youre after max power. But if you want the most efficient running with very good robustness against desync, it is the perfect choice.- Like voltage & curr

...
Available
£33.07
Description: Brand name:AUSTARItem Number:AX6 S Item name: Transmitter Channels: 4CHMode type: RC car/boat RF range: 2.4-2.48 G Hz Low voltage warning: yes (less than 4V) Powered by: 4 * AA Battery (not included) Display mode: LED indicator
Size: 22 * 17 * 9.5cm Receiver: Channel:4CH
Colour: Black Frequency: 2.4-2.48 G Hz Weight: 5g
Size: 3.2 * 2 * 1.9cm About the package: Package
Size:25*19*10cm Packaging Weight: About 100g Packageincluded:1X AX6S Transmitter 1X Receiver 1X Manual 1X Match Line



...
Available

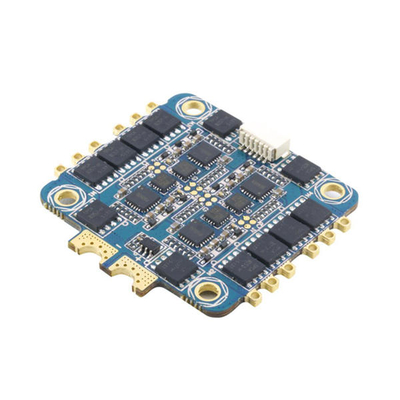

Original Airbot Typhoon 4 In1 S Race Verison V2 BB21 30A 3-6S Blheli_S
FPV Racing Brushless ESC

Original Airbot Typhoon 4 in1 S Race Verison V2 BB21 30A 3-6S Blheli_S FPV Racing Brushless ESCNote:Itdoesntincludeanycablesorconnector.Pleaseorderseparately.Specification:Brand name:AirbotItem model:Typhoon 4 in1 S Race Verison V2Item name:30A 3-6S Blheli_SBrushless ESCBB21 MCU, 48Mhz Runs BLHELI_S J_H_xx firmwareSupports 3-6S lipo input4PWM inputCurrent and Voltage outputNO BECSupports oneshot / Multishot / Dshot PWMOnly 36x36mm, mount holes 30.5x30.5mmSupports damped lightNO External capacitors neededPackage included:1 x Typhoon S Racer 4in1 ESC2x 6pin SH1.0 to 2.54 DuPont Cable (one for PWM input, one for Current output)
  • Click to be directed to retailers website:

    Buy

    Many items on our site can also be found here:

    Buy
    • External links may include paid for promotion
    Availability: In Stock
    £35.23

    Product Description

    Original Airbot Typhoon 4 in 1 S Race Verison V2 BB21 30A 3-6S Blheli_S FPV Racing Brushless ESCNote: Itdoesntincludeanycablesorconnector. Pleaseorderseparately. Specification: Brand name: Airbot Item model: Typhoon 4 in 1 S Race Verison V2 Item name:30A 3-6S Blheli_SBrushless ESCBB21 MCU, 48 Mhz Runs BLHELI_S J_H_xx firmware Supports 3-6S lipo input 4PWM input Current & Voltage output NO BECSupports oneshot / Multishot / Dshot PWMOnly 36x 36mm, mount holes 30.5x 30.5mm Supports damped light NO External capacitors needed Package included:1 x Typhoon S Racer 4in 1 ESC2x 6pin SH1.0 to 2.54 Du Pont Cable (one for PWM input, one for Current output)
