Original Airbot OMNIBUS F4 V6 Flight Controller Typhoon 32 V2.1 35A Blheli_32 3-6S Brushless ESCSpecification: Flight Controller OMNIBUS F4s upgrade version, using F405 & new target, with 5x UARTsnow.classic OMNIBUS design, using F4 MCU controls OSD over SPI bus, compare the first version, we added BMP280 as barometer & SD Card supports.OSD Configuration has been incl. in Betaflight GUI.FCincl. 5V1A BEC on board (3-6s) & 1x 8V BEC for Camera MPU6000 at SPI bus, Ext, SPI for damped gyro Use fireworks v 2 firmware, in CLI, setgyro_to_use=SECONDNew version with 8PIN Sh 1.0 Socket, could be much easier connect to our 4in 1 ESC by one cable. On v 5, we added jumpers for Current source select, pleaseread the manual & set the jumperbefore using the FC.STM32 F405 MCU, Runs Betaflight 3.0 firmware SBUS/PPM input (Pinheaders)6PWM output (1-4 Pinheaders & Sh 1.0 Plug, 5-6 as Pinheaders) Only 36x 36mm, mount holes 30.5x 30.5mm INCL. BARO BMP280SPI Sensor MPU6000 Flash Brushless ESC32bit ESC with BLHELI32 firmware Supports 3-6S lipo input 4PWM input Voltage output (VBAT) Supports Oneshot / Multishot / Dshot PWMMounting holes 30.5x 30.5mm Supports damped light NO BECSupports DSHOT1200, BLHELI32 firmware. Added more CAPS to reduce power noise. Package Included:1 x Flight Cotnroller 1 x Brushless ESC1 x 3CM 8pin cable 1 x 4CM FPC cable ...

Original Airbot OMNIBUS F4 V6 Flight Controller Furling 32 35A 3-6S Blheli_32 Brushless with PDB for RC Drone FPV Racing Specification: Brand name: Airbot Item name:OMNIBUS F4 V6 Flight Controller Furling 32 35A ESCPDB Board Flight Controller User Manual, Download OMNIBUS F4s upgrade version, using F405 & new target, with 5x UARTsnow.classic OMNIBUS design, using F4 MCU controls OSD over SPI bus, compare the first version, we added BMP280 as barometer & SD Card supports.OSD Configuration has been incl. in Betaflight GUI.FCincl. 5V1A BEC on board (3-6s) & 1x 8V BEC for Camera MPU6000 at SPI bus, Ext, SPI for damped gyro Use fir eworks v 2 firmware, in CLI, setgyro_to_use=SECONDNew version with 8PIN Sh 1.0 Socket, could be much easier connect to our 4in 1 ESC by one cable. On v 5, we added jumpers for Current source select, pleaseread the manual & set the jumperbefore using the FC. Feature:STM32 F405 MCU, Runs Betaflight 3.0 firmware SBUS/PPM input (Pinheaders)6PWM output (1-4 Pinheaders & Sh 1.0 Plug, 5-6 as Pinheaders) Only 36x 36mm, mount holes 30.5x 30.5mm INCL. BARO BMP280SPI Sensor MPU6000 Flash Furling 32
- 32bit BLHELI ESCBLHeli_32 is the third generation BLHeli code, following base BLHeli & BLHeli_S.BLHeli_32 runs on an ARM 32bit MCU, initially it will be on a Cortex-M0 running at 48 M Hz, but there are MCUs out there that can run a lot faster. So what can the increased MCU speed do? First of all, it can run input signals with lower latency at faster rates. Dshot up to at least Dshot 1200,
...

Original Airbot OMNIBUS F4 V6 Flight Controller Furling 32 mini 45A Blheli_32 Brushless ESC with PDB for RC Drone FPV Racing Specification: Brand name: Airbot Item name:OMNIBUS F4 V6 Flight Controller Furling 32 mini 45A Blheli_32 Brushless ESCPDBFlight controller: User Manual, Download OMNIBUS F4s upgrade version, using F405 & new target, with 5x UARTsnow.classic OMNIBUS design, using F4 MCU controls OSD over SPI bus, compare the first version, we added BMP280 as barometer & SD Card supports.OSD Configuration has been incl. in Betaflight GUI.FCincl. 5V1A BEC on board (3-6s) & 1x 8V BEC for Camera MPU6000 at SPI bus, Ext, SPI for damped gyro Use fir eworks v 2 firmware, in CLI, setgyro_to_use=SECONDNew version with 8PIN Sh 1.0 Socket, could be much easier connect to our 4in 1 ESC by one cable. On v 5, we added jumpers for Current source select, pleaseread the manual & set the jumperbefore using the FC. Feature:STM32 F405 MCU, Runs Betaflight 3.0 firmware SBUS/PPM input (Pinheaders)6PWM output (1-4 Pinheaders & Sh 1.0 Plug, 5-6 as Pinheaders) Only 36x 36mm, mount holes 30.5x 30.5mm INCL. BARO BMP280SPI Sensor MPU6000 Flash Furling 32 mini 45A Blheli_32 Brushless ESCNew BLHELI32 ESC with F3 MCU, give more smooth control & faster responding speed. New technology Mosfet, supports up to 50A burst & 45A continued. (ESC mounted under props, without anything covered on the ESC) Feature:F3 (M4 Core) MCU, Runs BLHELI32 firmware, the MCU works at 108 Mhz Mosfet tested at 4S 55A, under props, nothing cover ...

Original Airbot OMNINXT F7 Flight Controller Typhoon 32 V2.1 35A Blheli_32 3-6S Brushless ESCSpecification: Flight Controller The Omni NXT F7 is Airbots top of the range flight controller based on the newly designed NXT architecture. It uses the trusty MPU6000 Gyro with an additional ICM20608 on top. With the onboard damping box, the gyros run perfectly under 32k looptime. If you havent already seen it, you should check out Joshs awesome video on different IMUs. The NXT also comes with 2 different BECs & 6 UARTs. Omni NXT F7 supports 3-6s LIPO direct input, built-in BEC for camera & power Filter. This FC is designed to be able to pair with one of Airbots 4in 1 ESCs to form a powerful combo, & also has pins for individual ESCs too.-F7 MCU processors-Two gyros onboard: MPU6000 for sampling up to 8khz & ICM20608 for sampling up to 32khz-30.5x 30.5mm Mounting holes-Supports 3-6S Lipo-Built-in 5V 1A BEC output (Buck)-Built-in 8V 1A BEC with LC filter output for the camera & VTX (Buck)-STM32 controls OSD chip over SPI in DMA mode (Betaflight OSD)-Built-in hall Current Sensor ( No current sensor)-More caps to reduce power noise-Port for easy connection to Airbot 4-in-1 esc (SH1.0 8P)- Solder pads added for Smart Audio & Camera Control Brushless ESC-32bit ESC with BLHELI32 firmware-Supports 3-6S lipo input-4PWM input-Voltage output (VBAT)-Supports Oneshot / Multishot / Dshot PWM-Mounting holes 30.5x 30.5mm-Supports damped light-NO BEC- Supports DSHOT1200, BLHELI32 firmware Package Incl ...

Original Airbot Omni NXT F7 Flight Controller OSD 5V/8V BEC MPU6000 Gyro ICM20608 32khz 3-6 S The Omni NXT F7 is Airbots top of the range flight controller based on the newly designed NXT architecture. It uses the trusty MPU6000 Gyro with an additional ICM20608 on top. With the onboard damping box, the gyros run perfectly under 32k looptime. If you havent already seen it, you should check out Joshs awesome video on different IMUs. The NXT also comes with 2 different BECs & 6 UARTs. Omni NXT F7 supports 3-6s LIPO direct input, built-in BEC for camera & power Filter. Specification: Brand name: Airbot Item name: Omni NXT F7 Flight Controller F7 MCU processors Two gyros onboard: MPU6000 for sampling up to 8khz & ICM20608 for sampling up to 32khz 30.5x 30.5mm Mounting holes Supports 3-6S Lipo Built-in 5V 1A BEC output (Buck) Built-in 8V 1A BEC with LC filter output for the camera & VTX (Buck)STM32 controls OSD chip over SPI in DMA mode (Betaflight OSD) Current sensor: NOMore caps to reduce power noise Port for easy connection to Airbot 4-in-1 esc (SH1.0 8P) Solder pads added for Smart Audio & Camera Control Package Included:1 x Omni NXT F7 Flight Controller ...

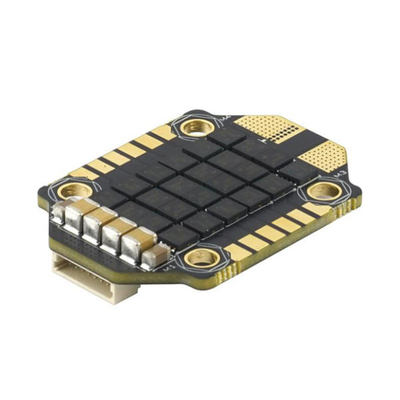

Original Airbot Ori 32 4 In 1 Blheli_32 25A 2-4S DSHOT1200 FPV Racing Brushless ESC 20x 20mm Note: Itdoesntincludeanycablesorconnector. Pleaseorderseparately. Specification: Brand name: Airbot Item name: Ori 32 4 In 1 Blheli_32 25A ESC32bit ESC with BLHELI32 firmware Supports 2-4S lipo input 4PWM input Voltage output (VBAT)NO BECSupports oneshot / Multishot / Dshot PWMMount holes 20x 20mm Supports damped light Package included:1 x Ori 32 4 In 1 Blheli_32 25A ESC ...

Original Airbot Power Module V2 BECLC Filiter for OMNIBUS F3 F4 Flight Controller Specification: Brand name: Airbot Item name: Power Module Suitable for OMNIBUS F3 F4 Flight Controller Packge Included:1 x Power Module ...

Original Airbot Typhoon 32 V2 4 In 1 35A Blheli_32 3-6S DSHOT1200 FPV Racing Brushless ESC Telemetry Ready 30.5x 30.5mm Note: Itdoesntincludeanycablesorconnector. Pleaseorderseparately. Specificaiton: Brand name: Airbot Item name: Typhoon 32 V2 4 In 1 35A ESC32bit ESC with BLHELI32 firmware Supports 3-6S lipo input 4PWM input Voltage output (VBAT) Supports Oneshot / Multishot / Dshot PWMMounting holes 30.5x 30.5mm Supports damped light NO BECTo download the installation package of BLHELI_32 Android APP please Click Here. Package
Includes::1 x 4in 1 ESC board NOTE: This does not include any cables or connectors. Please order separately.
...

Original Airbot Typhoon 4 in 1 S Race Verison V2 BB21 30A 3-6S Blheli_S FPV Racing Brushless ESCNote: Itdoesntincludeanycablesorconnector. Pleaseorderseparately. Specification: Brand name: Airbot Item model: Typhoon 4 in 1 S Race Verison V2 Item name:30A 3-6S Blheli_SBrushless ESCBB21 MCU, 48 Mhz Runs BLHELI_S J_H_xx firmware Supports 3-6S lipo input 4PWM input Current & Voltage output NO BECSupports oneshot / Multishot / Dshot PWMOnly 36x 36mm, mount holes 30.5x 30.5mm Supports damped light NO External capacitors needed Package included:1 x Typhoon S Racer 4in 1 ESC2x 6pin SH1.0 to 2.54 Du Pont Cable (one for PWM input, one for Current output) ...

Original Airbot Wild Willys Special Juice 2306 2700KV Brushless Motor for RC FPV Racing Drone Specification: Brand name: Airbot Item name: Wild Willys Special Juice Motor KV: 2700KVStator Diamter: 23mm Stator Length: 3mm Max Current: 55A (30S) Weight: 29g

Features:-Long motor wires for perfect installation with a Flight One Bolt 4in 1 or Bolt 32 ESC-Low profile pantsless stator to shave precious grams & add robustness in hard hits-Solid core steel shaft that runs throughout the motor to prevent any warping of the bell in hard hits-Square bolt hole mounting pattern to shave weight & add simplicity to the build-Low profile prop nuts-The sickest pink color scheme ever seen by man Package Included:1 x Wild Willys Special Juice Motor

...
