Eachine Tiny QX90 Micro FPV Racing Quadcopter Spare Parts Carbon Fiber DIY Frame Kit Description: Brand Name: Eachine Item Name: DIY Frame Kit Item NO.: QX90F
Material: Carbon Fiber Wheelbase: 90mm Thickness:1mm Dimension: 118*118*70mm Net Weight: 8g Motor

Size: 8.5x 20mm

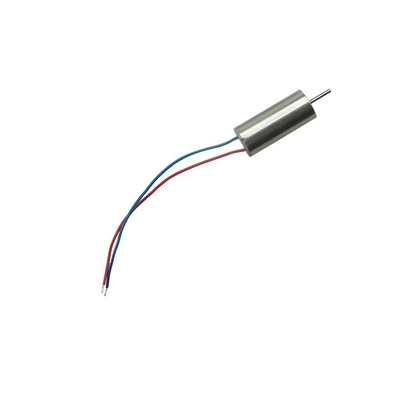

Features: Compatible with 55mm propeller Compatible with 8520 Coreless motor Can be used with 1S 3.7V lipo battery Recommanded Part: Propeller: 55mm Propeller Motor: 8520 Motor Battery: 3.7V 600m Ah Battery Flight Controller: F3 Controller Board Package Included:1 x Frame Kit



...

Eachine Tiny QX90 QX95 Micro FPV Racing Quadcopter Spare Parts Propeller Protection Cover Description: Brand Name: Eachine Item Name: Protection Cover Weight: 3g
Colour: Black Usage: Spare parts for Eachine Tiny QX90 QX95 Micro FPV Racing Quadcopter Note: The QX90 Racing Quadcopter not included. Package Included:1 x Protection Cover
...

Eachine Tiny QX90 QX95 Micro Racing Quadcopter Spare Parts 5.8G 4 Leaves RHCP FPV Mushroom Antenna Description: Brand Name: Eachine Item Name: Antenna Type: RHCP
Features: Light weight, good effect & strong signal Suitable for Eachine Tiny QX90 QX95 Micro Racing Quadcopter Package Included:1 x Antenna
...

Eachine Tiny QX90C Micro FPV Racing Quadcopter Spare Parts Colorful DIY Frame Kit QX90C1 Description: Brand Name: Eachine Item Name: DIY Frame Kit Item NO.: QX90C1
Material: Plastic
Colour: Yellow, Black, Orange, Blue (Optional) Wheelbase: 90mm Thickness: 1mm Dimension: 118*118*70mm Net Weight: 3.9g Motor

Size: 8.5x 20mm
Features: Colorful, there are a variety of colors available. Compatible with 55mm propeller Compatible with 8520 Coreless motor Recommanded Part: Propeller: 55mm Propeller Motor: 8520 Motor Battery: 3.7V 600m Ah Battery Flight Controller: F3 Controller Board Package Included:1 x Frame Kit




...

Eachine Tiny QX95 Micro DIY Frame Kit 1.5mm 3K Carbon Fiber Only 8g Support 8520 Coreless Motor Description: Brand Name: Eachine Item Name: DIY Frame Kit Item NO.: QX95F
Material: Carbon Fiber Wheelbase: 95mm Thickness:1.5mm Dimension: 125*85*55mm Net Weight: 8g Motor

Size: 8.5x 20mm
Features: Using 3K carbon fiber board CNC processing. Small wheelbase 95mm, very small brushed motors can be utilized as the power source with small 55mm propellers. On these the top plate is fitted with an extra plate added to fit you FPV camera. Lightweight about 8g. Compatible with 55mm propeller 8520 Coreless motor Recommanded Part: Propeller: 55mm Propeller Motor: 8520 Motor Battery: 3.7V Lipo Battery Flight Controller:SP_RACING_F3 EVO Brushed FRF3_EVO_BRUSHED Flight Controller FLF3_EVO_BRUSHED Flight Controller DSF3_EVO_BRUSHED Flight Controller AIOF3_BRUSHED Flight Controller FPV Camera: Eachine TX03 Camera CM275T Camera Package Included:1 x Frame Kit



...

Eachine TRASHCAN 75mm Crazybee F4 PRO OSD 2S Whoop FPV Racing Drone 500mm Flying Racing Gate Door Apron Take OFF Landing Combo Specifications: Eachine TRASHCAN FPV Racing Drone Brand Name: Eachine Model Name:TRASHCANItem Name: 2S75mm Brushless Whoop racer drone BNF/PNPWheelbase: 75mm
Size: 98mm*98mm*36mm Weight: 33g (without battery) Weight:48g (with Original 1s 300mah lipo battery x 2) Spare parts specifications: Motor Mode: TC0803KV15000 Configu-ration: 9N12 P Stator Diamter: 8mm Stator Length: 3mm Shaft Diameter: 1mm Motor Dimension (Dia.* Len): 10.5mm*14.5mm Weight (g): 2.2g No.of Cells (Lipo): 1S-2 S Flight controller (Frsky version) CRAZYBEEF4 PRO FR Firmware target: Crazybee F4FRMCU: STM32F411CEU6 (100MHZ, 512K FLASH) Sensor: MPU-6000 (SPI connection) Board

Size: 28.5 * 28.5MMPower supply: 1-2 Sbattery input (DC 3.5-8.7V) Built-in 6A (each) Blheli_S 4in 1 ESC Dshot 600 ready Frsky version Built-in SPI Frsky receiver with telemetry (D8/D16 switchable) Flysky version Built-in SPIFlysky receiver with telemetry (AFHDS/AFHDS2 Aswitchable)DSM2/X Version built-in Serial-based DSM2/DSMX compatible satellite receiver No RX version need to add external Receiver Built-in Betaflight OSD (SPI Control) Built-in Current meter Max 28 A Current meter scale set to 1175 Built-in 5V 1A Buck / Boostwith LC filter Built-in voltage detection BLHELI_S pass-through Ready Taillight LED Ready Onboard 4in 1 ESCMCU upgraded to EFM8BB21 Power supply: 1-2S Li Po/ Li Po HV (3.5v/8.7v) Current: 6A continuous peak 7A (3 seconds) Support BLHeli Suite programmable F


...

Eachine TRASHCAN 75mm Crazybee F4 PRO OSD 2S Whoop FPV Racing Drone Caddx Eos 2 Adjustable Camera 25~200m W VTX Swtichable Specifications: Brand Name: Eachine Model Name:TRASHCANItem Name: 2S75mm Brushless Whoop racer drone BNF/PNPWheelbase: 75mm
Size: 98mm*98mm*36mm Weight: 33g (without battery) Take off weight:48g (with Original 1s 300mah lipo battery x 2) Spare parts specifications: Motor Mode: TC0803KV15000 Configu-ration: 9N12 P Stator Diamter: 8mm Stator Length: 3mm Shaft Diameter: 1mm Motor Dimension (Dia.* Len): 10.5mm*14.5mm Weight (g): 2.2g No.of Cells (Lipo): 1S-2 S Flight controller (Frsky version) CRAZYBEEF4 PRO FR Firmware target: Crazybee F4FR (Flysky version) CRAZYBEEF4 PRO FS Firmware target: Crazybee F4FS (DSM2/DSMX version) CRAZYBEEF4 PRO Firmware target: Crazybee F4DX (No RX version) CRAZYBEEF4 PRO FR Firmware target: Crazybee F4DXMCU: STM32F411CEU6 (100MHZ, 512K FLASH) Sensor: MPU-6000 (SPI connection) Board

Size: 28.5 * 28.5MMPower supply: 1-2 Sbattery input (DC 3.5-8.7V) Built-in 6A (each) Blheli_S 4in 1 ESC Dshot 600 ready Frsky version Built-in SPI Frsky receiver with telemetry (D8/D16 switchable) Flysky version Built-in SPIFlysky receiver with telemetry (AFHDS/AFHDS2 Aswitchable)DSM2/X Version built-in Serial-based DSM2/DSMX compatible satellite receiver No RX version need to add external Receiver Built-in Betaflight OSD (SPI Control) Built-in Current meter Max 28 A Current meter scale set to 1175 Built-in 5V 1A Buck / Boostwith LC filter Built-in voltage detection BLHELI_S pass-through Ready Taillight LED Read


...

Eachine TRASHCAN 75mm FPV Racing Drone Spare Part 3.8V 300m Ah 40C/80C 1-2S Lipo Battery PH2.0 Plug Specification: Brand name: Eachine Capacity: 300m Ah Voltage: 3.8v Continuous Discharge Rate: 40 C Instantaneous discharge rate: 80C
Size: 55mmx 11.5mmx 6.5mm Weight: 7.8g Connector: PH2.0* Notes: Need 2pcs batteries for Series circuit Package Included:1 x 3.8V 300m Ah 40C/80C Battery
...

Eachine TRASHCAN 75mm FPV Racing Drone Spare Part 5.8G 25m W~200MW Switchable VTX FPV Transmitter 3.3-5.5 V Specification: Brand name: Eachine Output power: 25~200mwswitchable Frequency: 40CHInput voltage: 3.3V 5.5 V Current consumption: 300m A (type) Antenna: RG178 antenna Frequency: 5.8 G Hz 5bands 40channels With Raceband Smart Audio ready Weight: 3g Package Included:1 x 25m W~200MW Switchable VTXQA: How to swich the frequency & channel? Frequency: Plug USB (Universal Serial Bus), connectbetaflight, goto CLIcommand:25mw: Setvtx_power=1save 100mw: Setvtx_power=2save 200mw: Setvtx_power=3save Channel: Setvtx_band=1-5 Setvtx_channel=1-8 ...

Eachine TRASHCAN 75mm FPV Racing Drone Spare Part Damping Ball Screws Shock Specification: Brand name: Eachine Item name: Screws + Shock Damping Ball Suitable for TRASHCAN 75mm FPV Racing Drone Package Included:1 x Screw set 4 x Damping Ball ...
