Eachine Triangle D 5.8G 40CH 25/100/200/400m W Switchable Triangle AV FPV Transmitter VTX With DVRSupport Smart Audio Tramp for Tinywhoop Description: Brand: Eachine Model: Triangle D Item name: FPV Transmitter Input voltage: 5 V Current consumption: 337m A~615m A (type) Extra

Features: DVR/ Smart audio (Compatible with SA & TR) Power supply: 5V output for Camera Output power: 25m W/100m W/200m W/400m W switchable Antenna connector: IPEX (RG178 antenna) Cable connector: JST SH1.0 3pin for Camera JST SH1.0 5pin for Connect with Flight controller Compress Format: AVIVideo Output format: NTSCRecord video

Size: 1280x 720 Support TF card: Max.32 G Weight: 3.5g (excluding antenna) Dimensions: 29mm*29mm*40mm, 25.5 stackable hole Kit contents: 1*VTX, 3*cable, 1* Antenna, 1* Instructions Button control Channel select mode Channel select Select channels by simple short presses. Blue LED light on stands for CH1, short presses to change 8 channels sequentially. For CH2/3/4/5/6/7/8, Blue LED flicker once, it wont light on. Notice: Blue LED only light on for CH1 Band select Press button for 2S, Green LED will flash, then short presses to select 5 bands. Power select Press button for 8S, Red LED P1 will flash, then select power by simple short presses to select 25m W/100m W/200m W sequentially, For 100m W, Red LED flicker once, it wont light on; For 200m W Red LED flicker once, it wont light on. Pressthebuttonagain, Red LED lights together, Represents the highest power 400m W. Notice: Red LED only light on for 25m W.DVR Function Easily g



...

Eachine TS130 Frame Spare Part 2mm Top Plate 3K Carbon Fiber for FPV Racing Drone Specification: Brand name: Eachine Item name: TS130 Frame Top Plate Thickness: 2mm
Material: 3K Carbon Fiber Artist: Hydrographics Transfer Printing Package Included:1 x TS130 Frame Top Plate
...

Eachine TS5823S 40CH 5.8G 200MW AV Transmitter Module RP-SMA Female Skyzone Upgrade Specification: Brand Name: Eachine Item Name: Transmitter Module Item NO.: TS5823 S Modulate: Wideband FM Modulate Video Format: NTSC/PALOutput Impedance:50 Ohm Output Power: 23-24d Bm Channel:40 CHOperating Voltage: 7V-24 V Supply Current: 190m A Operating Temperature: -10~85℃ Video Band Width: 0~8.0 MHz Audio Carrier Frequency: 6.5 MHz Video Input Level: 0.8~1.2 Vp-p Video Input Impedance: 75 Ohm Audio Input Level: 0.5~2.0 Vp-p Audio Input Impedance: 10K Ohm Connector: RP-SMA Female (Inner needle) Antenna Connector: RP-SMA Male (Inner hole) Dimension: 40mm x 23mm x 8mm Weight: 7.3g

Features:-40 channels-200m W RF power output-Smallest & lightest, easy to carry.-Super mini size & light weight, -Suitable for small multi-quadcopter, escpeically for DJIwizard series aircraft. Package Included:1 x TS5823S 40CH 5.8G 200MW RP-SMA Female Mini FPV Transmitter 1 x Antenna 1 x Gopro 3 video output cable 2 x connector cable 1 x Product

Specification Table



...

Eachine TS5828L Micro 5.8G 600m W 40CH Mini FPV Transmitter with Digital Display Description: User Manual Brand Name: Eachine Item Name: FPV Transmitter Channel: 40CHFrequency: 5.6G-5.9 G Current: 190m A/12 V Temp.: -10-85℃ Video Band
Width: 8 M Audio Band
Width: 6.5 M Antenna: RP-SMA
Size: 38x 18x 8mm Weight: 16g Band & Channel selection CHCH1CH2CH3CH4CH5CH6CH7CH8GROUPA5865MHZ5845MHZ5825MHZ5805MHZ5785MHZ5765MHZ5745MHZ5725MHZB5733MHZ5752MHZ5771MHZ5790MHZ5809MHZ5828MHZ5847MHZ5866MHZE5705MHZ5685MHZ5665MHZ5645MHZ5885MHZ5905MHZ5925MHZ5945MHZF5740MHZ5760MHZ5780MHZ5800MHZ5820MHZ5840MHZ5860MHZ5880MHZR5658MHZ5695MHZ5732MHZ5769MHZ5806MHZ5843MHZ5880MHZ5917MHZPackage Included:1 x Transmitter 1 x Antenna 1 x Cable 1 x User Manual


...

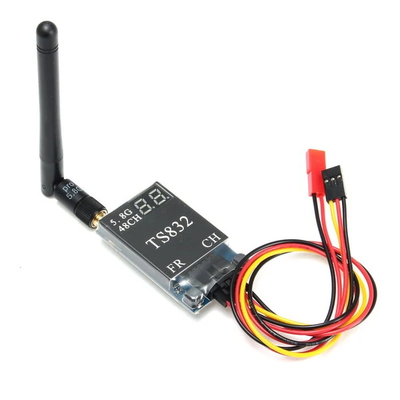

Only US$38.99, buy best eachine ts 832 boscam 5.8g 48ch 600mw 7.4-16v wireless transmitter w/ rc 832 5.8g 48ch wireless av receiver for rc drone sale online store at wholesale price. ...

Eachine TS832 TS840 Boscam TS832S Av Cable & Power Supply Cablenot include the gopro camera & transmitter Description: Product Name:2in 1AVcableandpowersupplycablefor Gopro Hero Camera TS832transmitter Function:FPVsystemaccessory, AVcableandpowersupplycablefor (TS832transmitterand Gopro Hero Camera) Feature:2in 1with A Vcableandpowersupplierplug Fitforgoprohero 3cameraand TS832transmitter Package Included:1x 2in 1AVcableandpowersupplycablefor Gopro Hero Camera TS832transmitter ...

Eachine Turbine QX70 Micro FPV Racing Quadcopter Spare Parts DIY Frame Kit QX701 Description: Brand Name: Eachine Item Name: DIY Frame Kit Item NO.: QX701
Material: PA Nylon
Colour: Yellow (Optional) Wheelbase: 70mm Thickness: 1mm Dimension: 97*97*75mm Net Weight: 8g Motor

Size: 8.5x 20mm
Features: Colorful, there are a variety of colors will available. Compatible with 40mm 4-Blade propeller. Compatible with 8520 Coreless motor. Package Included:1 x Frame Kit




...

Eachine Turtlebee F3 Micro Brushed Flight Controller Built-in Receiver OSD Current Meter Support Flip Over For Inductrix Tiny Whoop E010 E010 S User Manual, Please select Download 1. Frsky receiver 2. DSM2/DSMX receiver 3. Flysky receiver Specifications: Brand Name: Eachine Item Name: Turtlebee F3 Brushed Flight controller MCU: STM32F303CCT6 Gyro Accelerometer: MPU6000 Working Voltage: 1S Lipo or Li HVFirmware Target: Betaflight OMNIBUSMotor Driver: Texas Instruments DRV8850 Continuous Current: 5A each Peak Current: 8A each Motor Socket: JST 1.25MM 2pin Mounting Hole Distance: 25.45*25.45mm Diagonal Hole Distance: 36mm Whole

Size: 29.2*29.2mm Weight: 4g

Features:- Support ACRO/ Stable/ Horizon/ Air multi fly mode- Built-in Betaflight OSD- Built-in 2.4g receiver (Frsky/ Flysky/DSM2 DSMX to choose)- Built-in voltage & current detector alarm- Dshot 150 protocol ready, support Betaflight flip over when crashed. Receiver Option: 1. Frsky protocol D8 Mode 2. Flysky AFHDS-2A protocol 3. Spektrum DSM2/DSMX protocol Compatible:1. Frsky Receiver Support FRSKY X9D/X9D PLUS (D8 mode), and XJT (D8 Mode), DJT DFT DHT Transmitter.2. Flysky Receiver Support Eachine i 6, FS-i 4, FS-i 6, FS-i 6S, FS-i 6X, FS-i 10, FS-GT2E, FS-GT2G, FS-GT2F, Turnigy Evolution Transmitter.3. Spektrum DSM2/DSMX Receiver Support Spectrum/JR (DSM2/DSMX protocol) DEVO10/DEVO 7E (with deviation firmware). Flip Over Setting: Package Included:1 x Turtlebee F3 Flight controller 3 x Power Cable 4 x Rubber Shock Absorber 4 x Screws



...

Specifications: Brand Name: Eachine Item Name: 115mm Twig 3 Inch 3S Brushless FPV drone Wheelbase: 115mm
Size: 105mm*100mm*45mm
...

Eachine Twig 115mm 3 Inch FPV Racing Drone Spare Part 1105 5200KV 3-4S Brushless Motor Specification: Brand Name: Eachine Model: 1105 Item Name:1105 KV5200 3-4S Brushless Motor Configu-ration: 9N12 P Stator Diamter: 11mm Stator Length: 5mm Shaft Diameter: 1.5mm Motor Dimension (Dia.* Len): 14mm*17mm Weight: 5.8g

Features:- High efficiency & smooth- Dual bearing design & more balance- Better for Toothpick building Package Included:1 x 1105 KV5200 3-4S Brushless Motor

...
