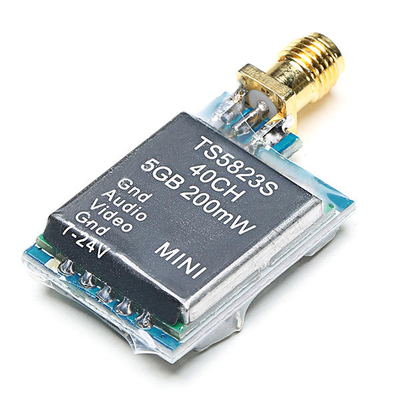

Eachine TS5823S 40CH 5.8G 200MW AV Transmitter Module RP-SMA Female Skyzone Upgrade Specification: Brand Name: Eachine Item Name: Transmitter Module Item NO.: TS5823 S Modulate: Wideband FM Modulate Video Format: NTSC/PALOutput Impedance:50 Ohm Output Power: 23-24d Bm Channel:40 CHOperating Voltage: 7V-24 V Supply Current: 190m A Operating Temperature: -10~85℃ Video Band Width: 0~8.0 MHz Audio Carrier Frequency: 6.5 MHz Video Input Level: 0.8~1.2 Vp-p Video Input Impedance: 75 Ohm Audio Input Level: 0.5~2.0 Vp-p Audio Input Impedance: 10K Ohm Connector: RP-SMA Female (Inner needle) Antenna Connector: RP-SMA Male (Inner hole) Dimension: 40mm x 23mm x 8mm Weight: 7.3g
Features:-40 channels-200m W RF power output-Smallest & lightest, easy to carry.-Super mini size & light weight, -Suitable for small multi-quadcopter, escpeically for DJIwizard series aircraft. Package Included:1 x TS5823S 40CH 5.8G 200MW RP-SMA Female Mini FPV Transmitter 1 x Antenna 1 x Gopro 3 video output cable 2 x connector cable 1 x Product
Specification Table
