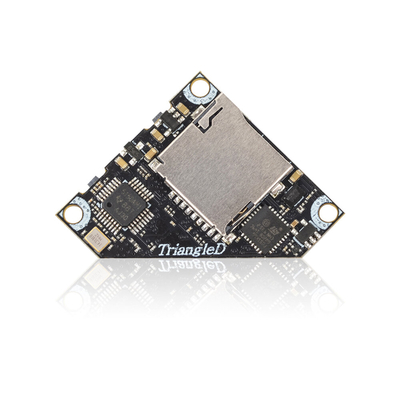

Eachine TriangleD 5.8G 40CH 25/100/200/400mW Switchable Triangle AV
FPV Transmitter VTX With DVR Support Smart Audio Tra
Eachine TriangleD 5.8G 40CH 25/100/200/400mW Switchable Triangle AV FPV Transmitter VTX With DVRSupport Smart Audio Tramp for TinywhoopDescription:Brand: EachineModel: TriangleDItem name: FPV TransmitterInput voltage: 5VCurrent consumption: 337mA~615mA(type)Extra features: DVR/ Smart audio(Compatible with SA and TR)Power supply: 5V output for CameraOutput power: 25mW/100mW/200mW/400mW switchableAntenna connector: IPEX(RG178 antenna)Cable connector: JST SH1.0 3pin for CameraJST SH1.0 5pin for Connect with Flight controllerCompress Format: AVIVideo Output format: NTSCRecord video size: 1280x720Support TF card: Max.32GWeight: 3.5g (excluding antenna)Dimensions: 29mm*29mm*40mm, 25.5 stackable holeKit contents: 1*VTX, 3*cable, 1*Antenna, 1*InstructionsButton control Channel select
modeChannel selectSelect channels by simple short presses.Blue LED light on stands for CH1, short presses to change 8 channels sequentially.For CH2/3/4/5/6/7/8, Blue LED flicker once, it wont light on.Notice:Blue LED only light on for CH1Band selectPress button for 2S, Green LED will flash, then short presses to select 5 bands.Power selectPress button for 8S, Red LED P1 will flash, then select power by simple short presses to select 25mW/100mW/200mW sequentially, For 100mW, Red LED flicker once, it wont light on;For 200mW Red LED flicker once, it wont light on. Pressthebuttonagain, Red LED lights together, Represents the highest power 400mW.Notice:Red LED only light on for 25mW.DVR FunctionEasily g
modeChannel selectSelect channels by simple short presses.Blue LED light on stands for CH1, short presses to change 8 channels sequentially.For CH2/3/4/5/6/7/8, Blue LED flicker once, it wont light on.Notice:Blue LED only light on for CH1Band selectPress button for 2S, Green LED will flash, then short presses to select 5 bands.Power selectPress button for 8S, Red LED P1 will flash, then select power by simple short presses to select 25mW/100mW/200mW sequentially, For 100mW, Red LED flicker once, it wont light on;For 200mW Red LED flicker once, it wont light on. Pressthebuttonagain, Red LED lights together, Represents the highest power 400mW.Notice:Red LED only light on for 25mW.DVR FunctionEasily g
