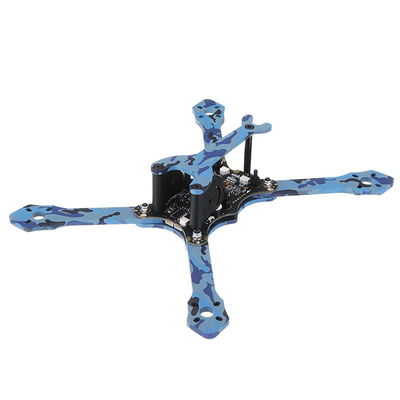

Eachine Wizard TS130 135mm Wheelbase Frame Kit 3K Carbon Fiber for RC FPV Racing Drone Specification: Brand name: Eachine Item name: Wizard TS130 Frame Kit Wheelbase: 135mm
Material: 3K carbon fiber Top plate thickness: 2mm Bottom plate thickness: 3mm Artist: hydrographics transfer printing Package Included:1 x Wizard TS130 Frame Kit
...

Eachine Wizard TS130 FPV Racing Drone PNP Omnibus F4 OSD 20A Dshot 600 40CH Smart Audio 200m W VTXDescription: Item Specification Eachine Wizard TS130 Wheelbase: 135mm
Material: 3K carbon fiber Top platethickness: 2mm Bottom platethickness: 3mm Artist: hydrographics transfer printing Weight: About 135g TS 20A 4in 1 Brushless ESCContinuous current: 20 A Peak current (5S): 25 A Input voltage: 2-4 S Supports Dshot 600, Dshot 300, Dshot 150
Size: 27x 27mm Weigjt: 3.3g TS1507 4100KV Brushless Motor Idle Current (Io/10V): 1.68 A Lipo Cell: 3-4 S Weight: 17.6g Max Continuous Current: 26 A Max Continuous Power: 416 W Max thrust: 626g (4S/3) Configu-ration: 9N/12 P Motor Resistance (RM): 0.0495 Stator Diameter: 15mm Stator Thickness: 7mm Motor Diameter: 21.6mm Motor Body Length: 15.5mm Overall Shaft Length: 29mm Prop adapter shaft: M5 Bolt holes spacing: 12mm Bolt thread: M2 Propeller: 3 Customized Omnibus F4 Flight Controller CPU: f 4STM32F405 Input voltage: 3-4 S Sensor: MPU6000 SPIBuilt in OSDBuilt in 5V2A BEC
Size: 25x 25mm Weight: 2.3g 5.8G 40CH25mw / 100mw / 200mw VTXInput voltage: 7-24 V Dimensions: 20x 20mm
Size:27mm 27mm 4.5mm Adjustable 25mw / 100mw / 200mw Supports smart audio (remote OSD parameter adjustment)FOXEER Arrow MICRO PRO Camera Solution: 1/3 Sony SUPER HAD II CCD+ Nextchip 2040 DSPPixel:PAL: 976 (H) x 494 (V);NTSC: 768 (H)494 (V)TV System: PALResolution: 600TVL (color) 650TVL (BW) Synchronization: internal Min. Illumination: 0.01 Lux WDR: support OSD programming board: support White Dot Repair: support DNR: 2D DNRCamera Title: support Image Adju



...

Eachine Wizard TS130 FPV Racing Drone Spare Part 1507 4100KV 3-4S Brushless Motor CW CCWSpecification: Brand name: Eachine Item name:TS1507 4100KVBrushless Motor KV: 4100KVStator Diameter: 15mm Stator Thickness: 7mm Motor Diameter: 21.6mm Motor Body Length: 15.5mm Overall Shaft Length: 29mm Prop adapter shaft: M5 Bolt holes spacing: 12mm Bolt thread: M2 Propeller: 3 Lipo Cell: 3-4 S Max Continuous Current: 26 A Max Continuous Power: 416 W Max thrust: 626g (4S/3) Configu-ration: 9N/12 P Motor Resistance (RM): 0.0495 Weight: 17.6g Package Included:1 x TS1507 4100KV Brushless Motor ...

Eachine Wizard TS130 FPV Racing RC Drone Spare Part Screw Set M2*6 Screw M2 Nut M2 Screw Column Specification: Brand name: Eachine Item name: Screw Set Usage: for Eachine Wizard TS130 FPV racing RC drone Package Included:12 x M2 Screw Column 6 x M2*6 Screw 4 x M3 Nut ...

Eachine Wizard TS130 Frame Spare Part 3mm Bottom Plate 3K Carbon Fiber for FPV Racing Drone Specification: Brand name: Eachine Item name: Wizard TS130 Frame Bottom Plate Thickness: 3mm
Material: 3K Carbon Fiber Artist: Hydrographics Transfer Printing Weight: 18g Package Included:1 x TS130 Frame Bottom Plate
...

Eachine Wizard TS215 FPV Racing Drone Spare Part 5S 18.5V 1550m Ah 80C Lipo Battery XT60 Description: Brand name: Eachine Item name: 5S 18.5V 1550m Ah 80C Lipo Battery Capacity: 1550mah Cell: 5 S Discharge rate: 80 C Connector: XT60
Size: 84x 33x 45mm Weight: 239g Package included:1 x 5S 18.5V 1550m Ah 80C Lipo Battery
...

Eachine Wizard TS215 FPV Racing Drone Spare Part Run Cam Swift 2 1/3 CCD 600TVL Camera IR Blocked Description: Brand name: Run Cam Item name: Swift 2 600TVL Camera Image sensor: 1/3 SONY Super HAD II CCDHorizontal resolution: 600TVL, 4:3 Lens: 2.3mm 150 Signal system: PALIntegrated OSD: YESIntegrated MIC: YESS/N Ration: 60d B (AGC OFF) Electronic shutter speed: PAL:1/50~100, 000 Auto Gain control (AGC): YESBack light compensation (BLC): YESMin.illumination: 0.01 Lux/1.2FWDR: D-WDRDNR: 2DNRDay/ Night: Color / Auto / BWPower: DC 5 to 36 V Net weight: 14g Dimensions: 28.5mm * 26mm * 26mm Connector: JST-XH 1.25mm * 5P/2 P Package included:1 x Run Cam Swift 2 600TVL Camera ...

Eachine Wizard TS215 215mm FPV Racing RC Drone F4 5.8G 72CH 40A BLHeli_32 Run Cam Swift 2 Camera XM+ BNF PNPDescription: Item Specification Eachine Wizard TS215 Wheelbase: 215mm
Material: 3K carbon fiber Frame arm thickness: 4mm Top platethickness: 3mm Bottom platethickness: 3mm Artist: hydrographics transfer printing Version: optional BNF version & PNP version Weight: 329g (excluding battery) Firmware: OMNIBUS F4 SDPackage weight: 870g Package

Size: 243mmx 95mmx 262mm TS 40A BLHeli_32 Brushless ESCBEC: no Continuous current: 40 A Peak current (5S): 45 A Input voltage: 2-6 S Current sensor: built in LED indicator onboard, the light colors are adjustable. Supports Dshot 1200, Dshot 600, Dshot 300, Dshot 150.TS2306 2450KV Brushless Motor KV: 2450NO.OF cell: 3-5 S Thrust: 2300g (16V 6040 2-blade prop) Framework: 12N14 P Motor shaft: 5mm Weight: 32.5g Customized Omnibus F4 Flight Controller CPU: f 4STM32F405 Barometer: BMP280 Input voltage: 3-5 S Sensor: MPU6000 SPIWith SD slot Built in OSDBuilt in 5V 3A BEC5.8G 72CH25mw / 200mw / 500mw / 800mw VTXInput voltage: 7-24 V Extra

Features: smart audio, 0.01m W (parameter-adjusting mode) Power supply: 5V camera @ under 0.3A max. Output voltage: 25m W-100m A 200m W-200m A 500m W-260m A 800m W-300m A @ 12 V Range: up to 4km with omnidirectional RHCP antennas Antenna connector: MMCX, RP-SMAPort connector: JST, 4pin Dimensions: 30.5x 30.5mm Weight: 8.5g (excluding antenna)
Material: 128g double copper Adjustable 25mw / 200mw / 500mw / 800mw Supports smart audio (remote parameter adjustment) Run Cam Swift 2 Ca





...

Eachine Wizard TS215 215mm FPV Racing RC Drone F4 5.8G 72CH 40A BLHeli_32 Run Cam Swift 2 Camera Frsky Taranis X-Lite Transmitter XM+ RTFDescription: Item Specification Eachine Wizard TS215 Wheelbase: 215mm
Material: 3K carbon fiber Frame arm thickness: 4mm Top platethickness: 3mm Bottom platethickness: 3mm Artist: hydrographics transfer printing Version: RTFFirmware: OMNIBUS F4 SDTS 40A BLHeli_32 Brushless ESCBEC: no Continuous current: 40 A Peak current (5S): 45 A Input voltage: 3-5 S Current sensor: built in LED indicator onboard, the light colors are adjustable. Supports Dshot 1200, Dshot 600, Dshot 300, Dshot 150.TS2306 2450KV Brushless Motor KV: 2450NO.OF cell: 2-6 S Thrust: 2300g (16V 6040 2-blade prop) Framework: 12N14 P Motor shaft: 5mm Weight: 32.5g Customized Omnibus F4 Flight Controller CPU: f 4STM32F405 Barometer: BMP280 Input voltage: 3-5 S Sensor: MPU6000 SPIWith SD slot Built in OSDBuilt in 5V 3A BEC5.8G 72CH25mw / 200mw / 500mw / 800mw VTXInput voltage: 7-24 V Extra

Features: smart audio, 0.01m W (parameter-adjusting mode) Power supply: 5V camera @ under 0.3A max. Output voltage: 25m W-100m A 200m W-200m A 500m W-260m A 800m W-300m A @ 12 V Range: up to 4km with omnidirectional RHCP antennas Antenna connector: MMCX, RP-SMAPort connector: JST, 4pin Dimensions: 30.5x 30.5mm Weight: 8.5g (excluding antenna)
Material: 128g double copper Adjustable 25mw / 200mw / 500mw / 800mw Supports smart audio (remote parameter adjustment) Run Cam Swift 2 Camera IR Blocked Image sensor: 1/3 SONY Super HAD II CCDHorizontal resolution: 600TVL,



...

Eachine Wizard TS215 FPV Racing RC Drone Multirotor Spare Part Battery Plate Non-Slip Mat Description: Brand name: Eachine Item name: Battery Plate Non-Slip Mat Usage: for Eachine Wizard TS215 FPV Racing Drone Package included:1 x carbon fiber battery plate 1 x bigger non-slip mat 1 x smaller non-slip mat 2 x sponge mat ...
